CROMIA

ELECTRICAL AND MECHANICAL SEEDING ELEMENT

The choice of the seeding element is crucial in achieving the best results according to the type of soil to be worked; MASCAR offers diversified options to meet various agronomic requirements:

  • CROMIA-ME
  • CROMIA-SD
  • MAXI-X

Recommended for hard and semi-sod soils.
AS SPEED INCREASES, SEEDING ACCURACY REMAINS UNALTERED.



>> CLICK HERE FOR MORE INFO
  1. Sturdy, enlarged parallelogram for greater stability
  2. Ground pressure from 125 to 280 kg easily regulated without tools
  3. 4 mm thick Ø 380 mm discs with removable screwed-on bearings
  4. Vacuum-operated aluminium seed distributor, in electric smart-drive or mechanical version
  5. Plougshare with quick adjustment (fixed positions) and knife with micro-adjustment
  6. V-shaped furrow closing wheels adjustable in preload, width and incidence
  7. Shock absorber: less vibration at the seed distributor, smoother seeding depth
  8. 55 L seed hopper, with rear hermetically sealed lid and opening lock
  9. Quick preload adjustment
  10. Mechanical transmission with reinforced chain (mechanical version)
  11. Screw seed depth adjustment from 1 to 10 cm



Request more information
CROMIA

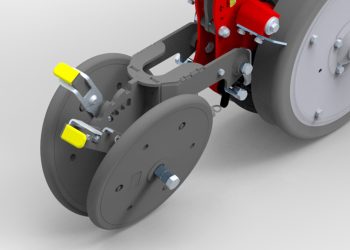

[STANDARD] Rubber wheels at “V” shape 1”

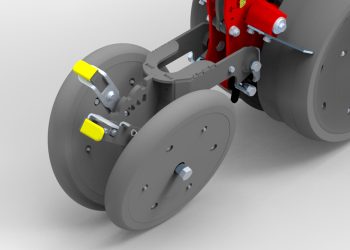

[OPTIONAL] Rubber wheels at “V” shape 2”

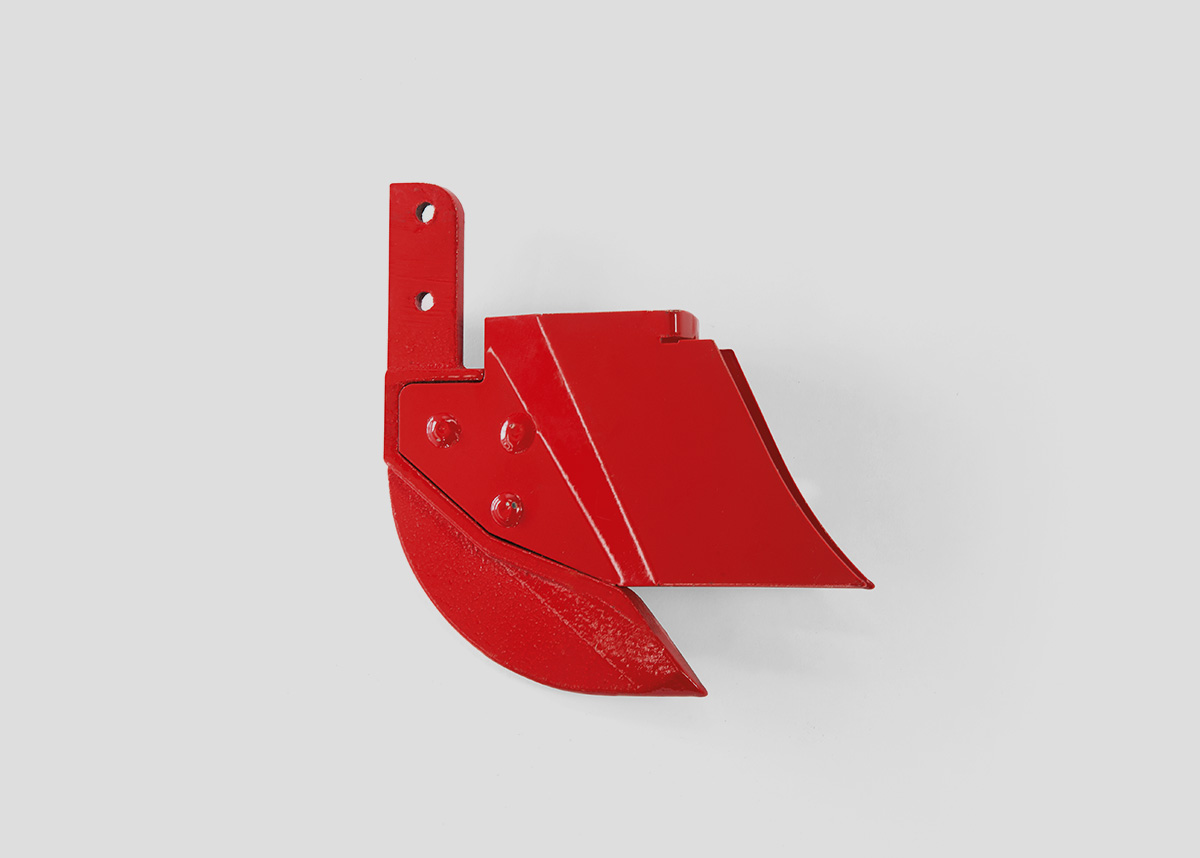

[STANDARD] Plougshare with quick adjustment

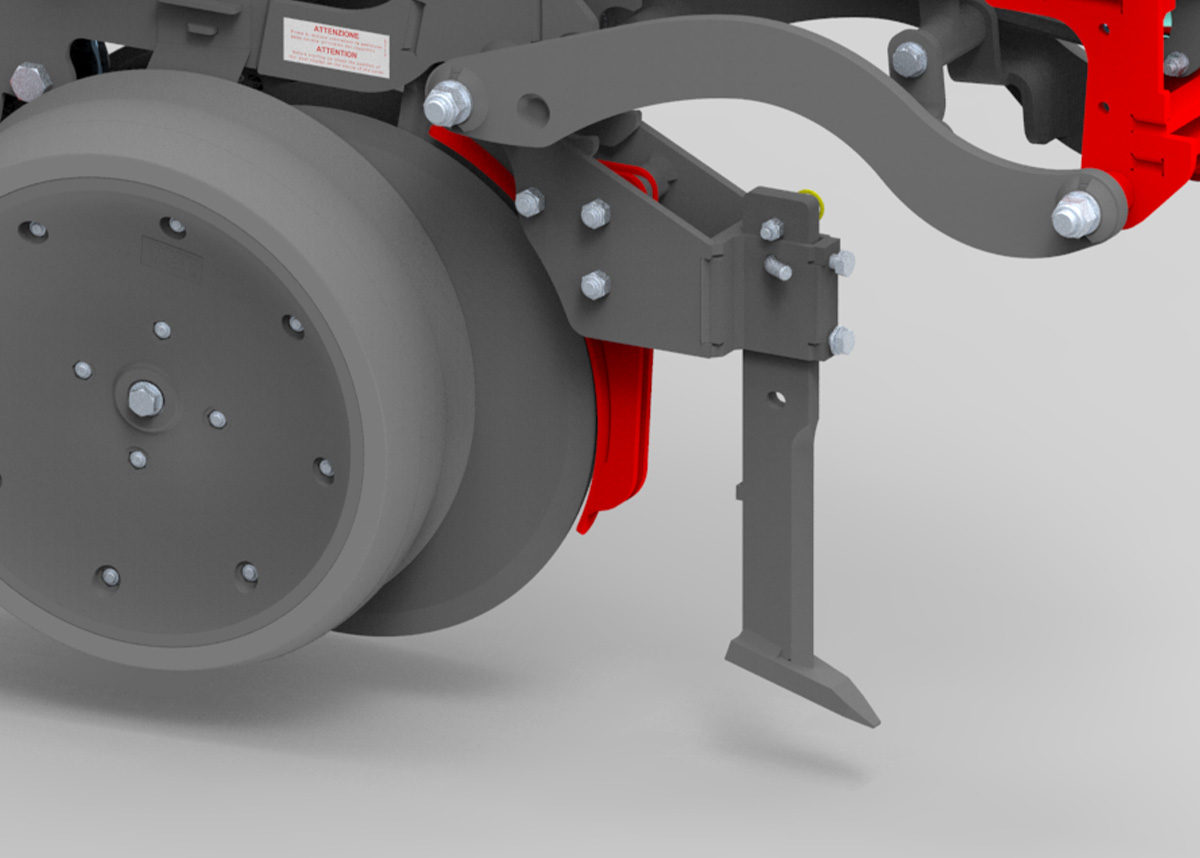

[OPTIONAL] Depth tip

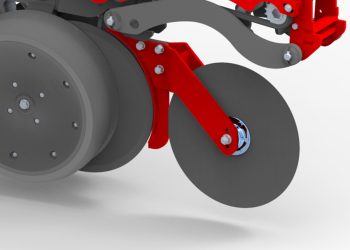

[OPTIONAL] Front disc opener

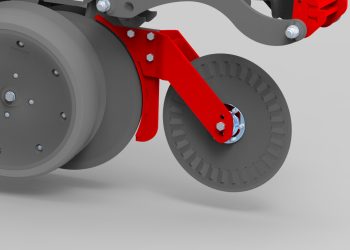

[OPTIONAL] Striped front furrow-opening disc

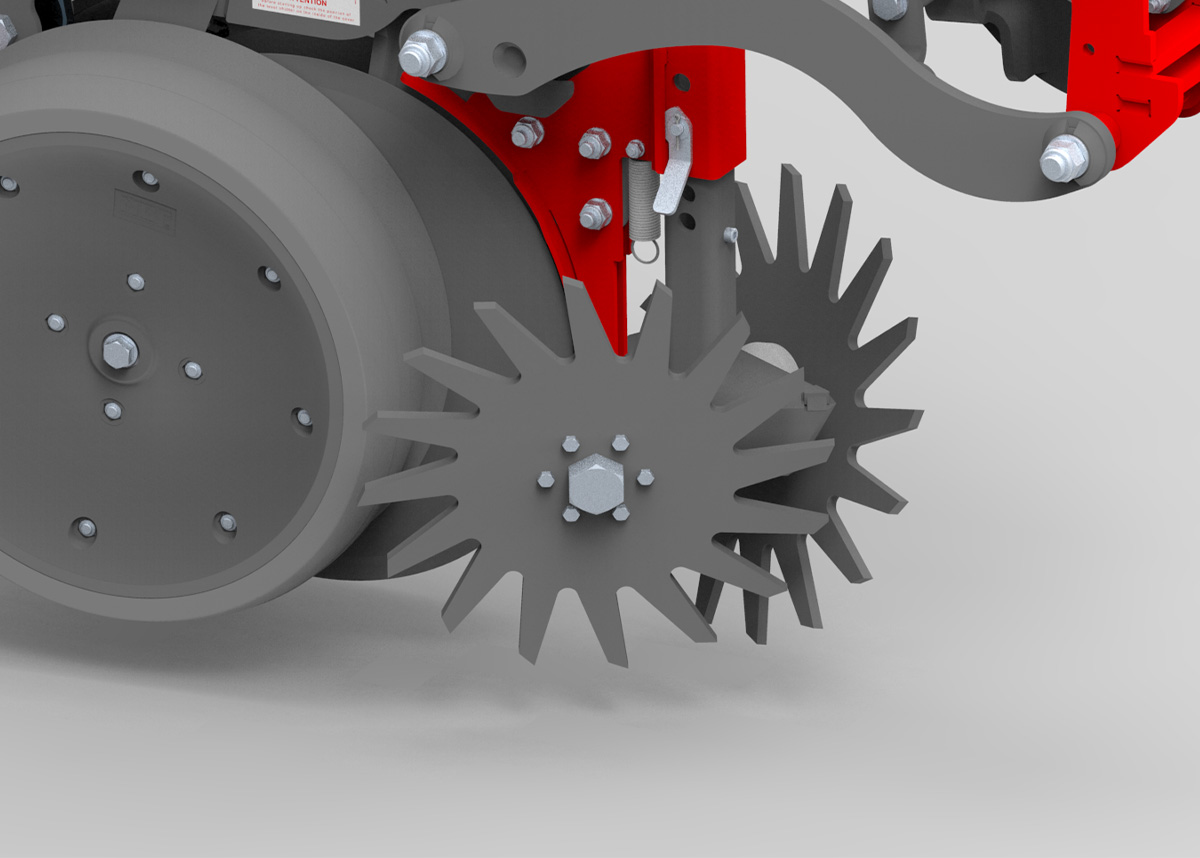

[OPTIONAL] Rotary star residual spreader

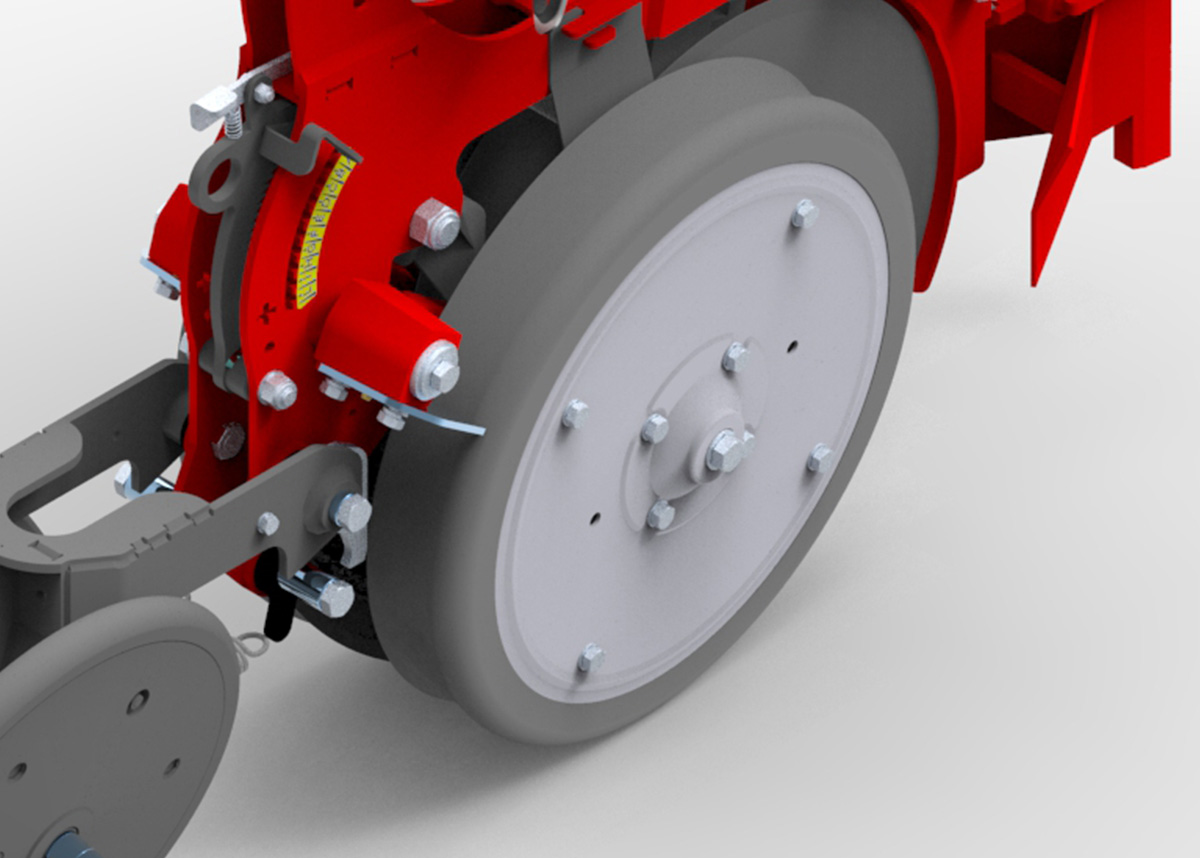

[OPTIONAL] Narrow gauge wheels

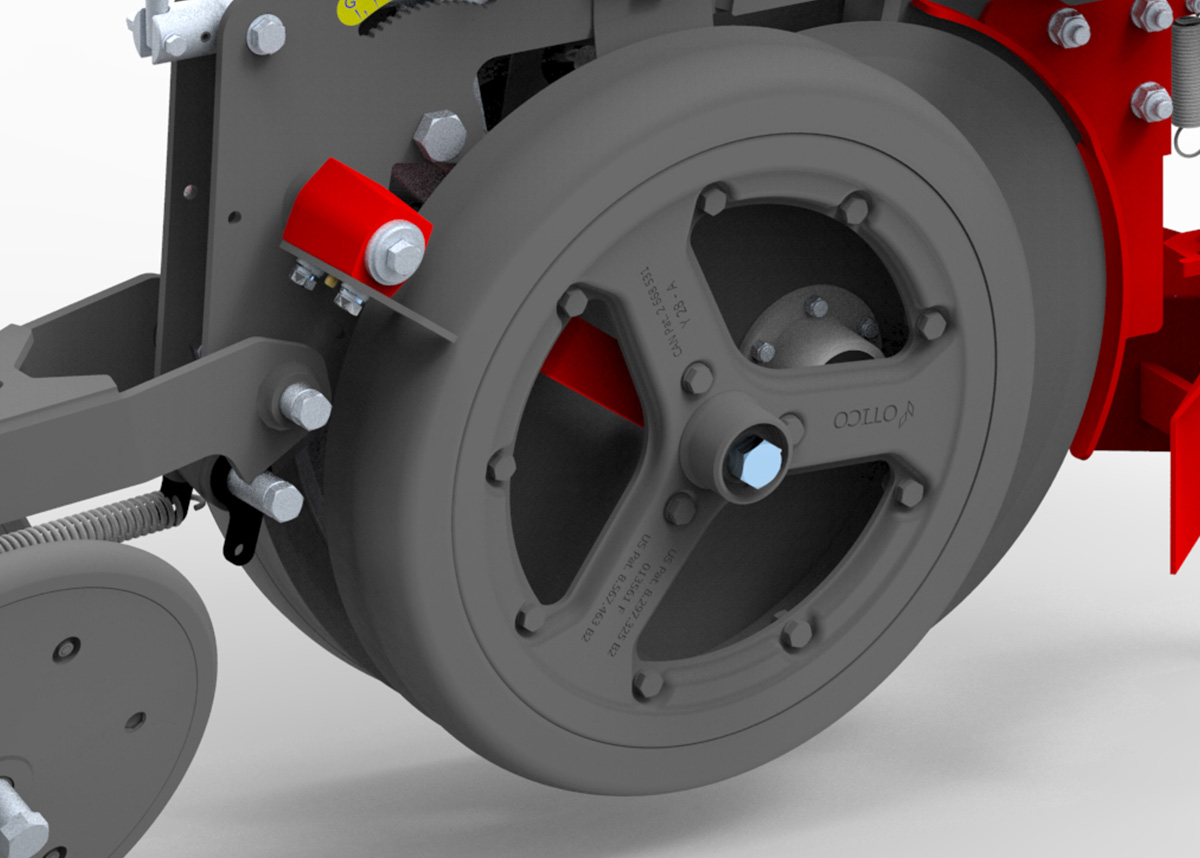

[OPTIONAL] Spoke gauge wheels

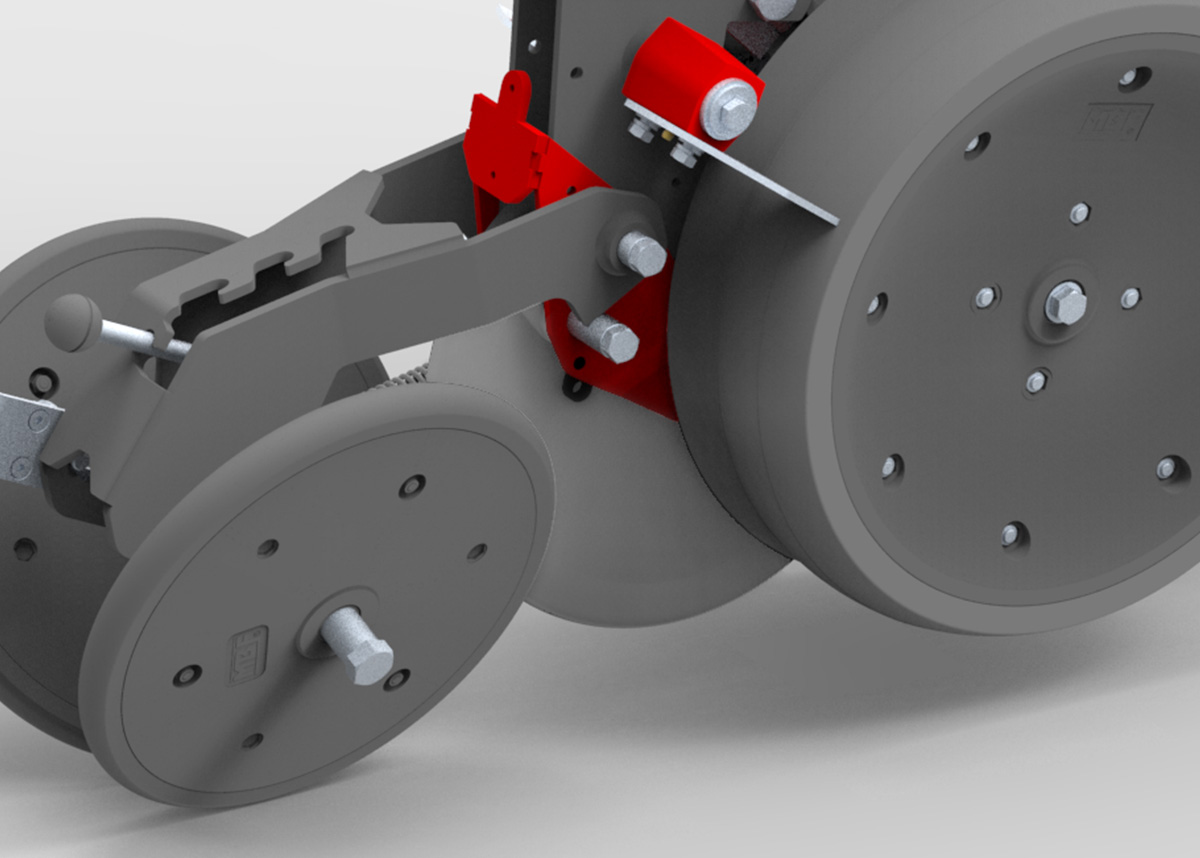

[OPTIONAL] Aluminum pressing wheel

[OPTIONAL] Rubber pressing wheel

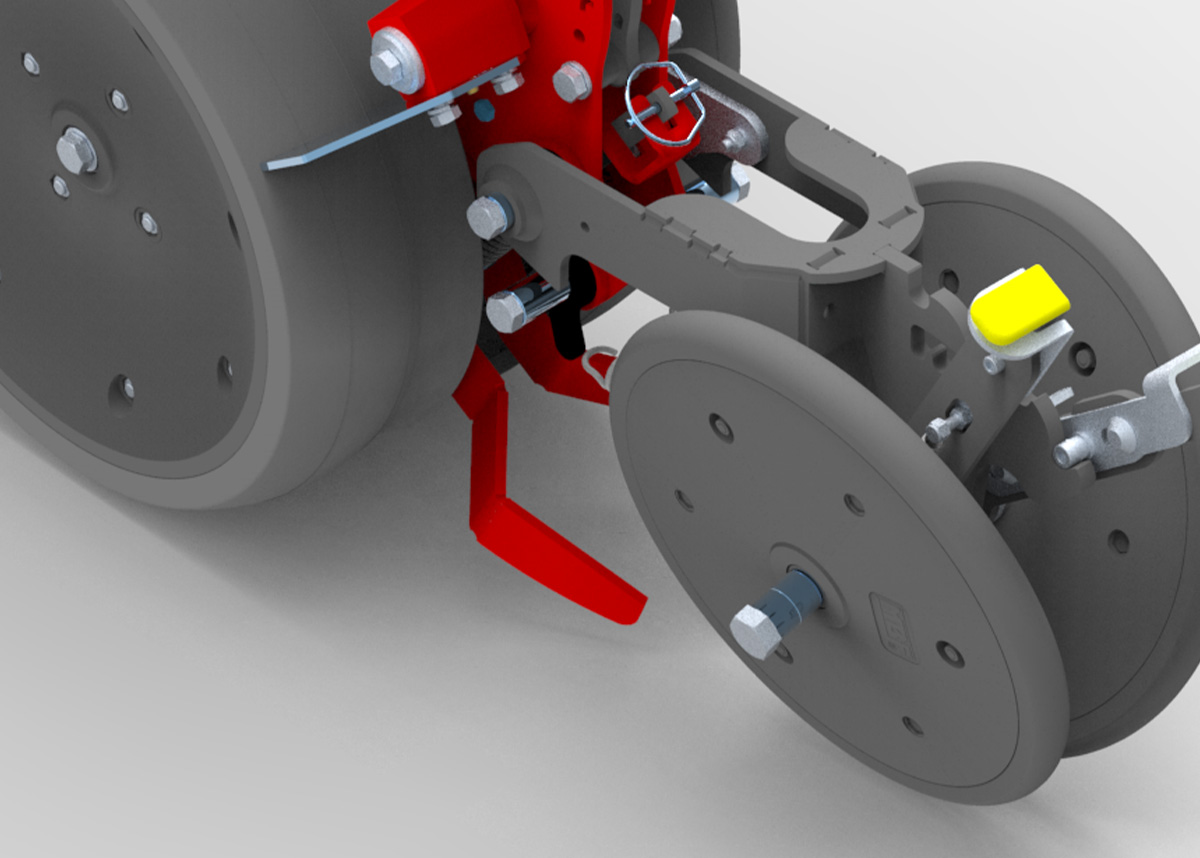

[OPTIONAL] Middle seed cover device

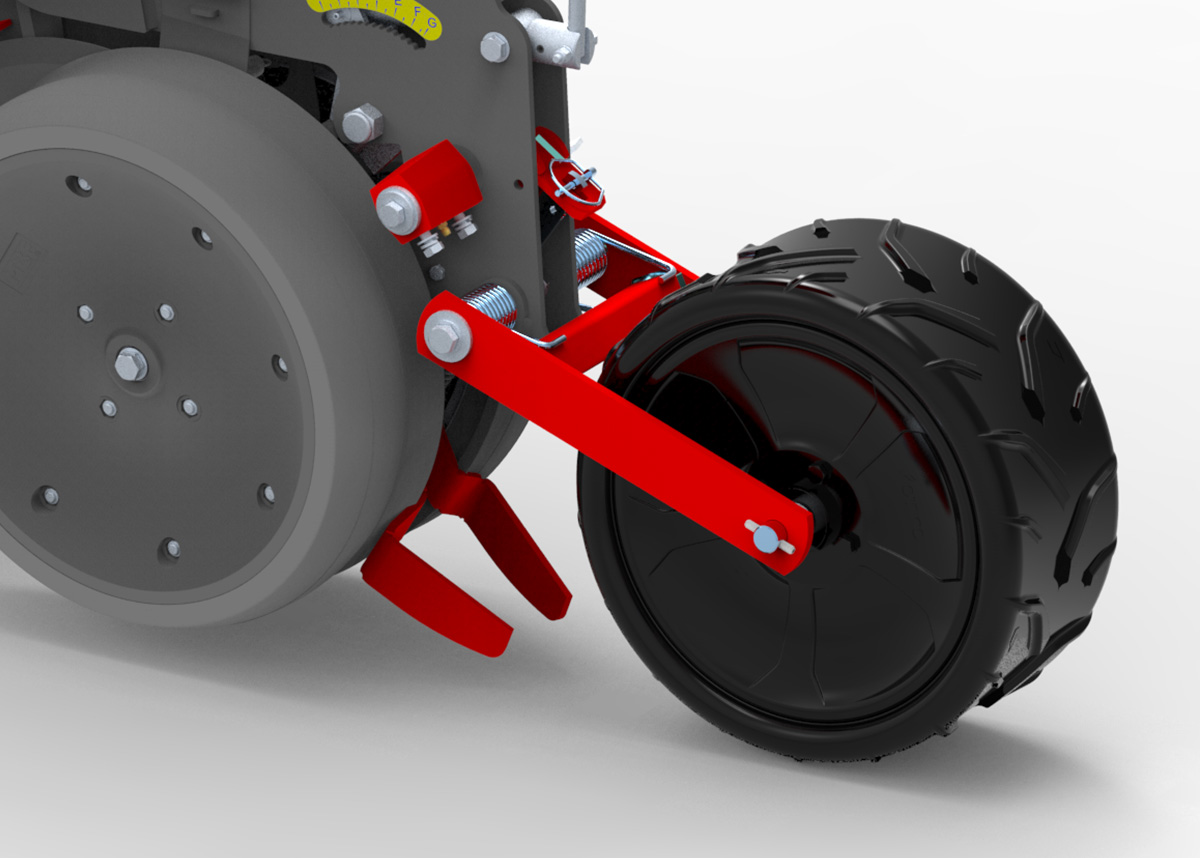

[OPTIONAL] Farmflex wheel and cover seed device

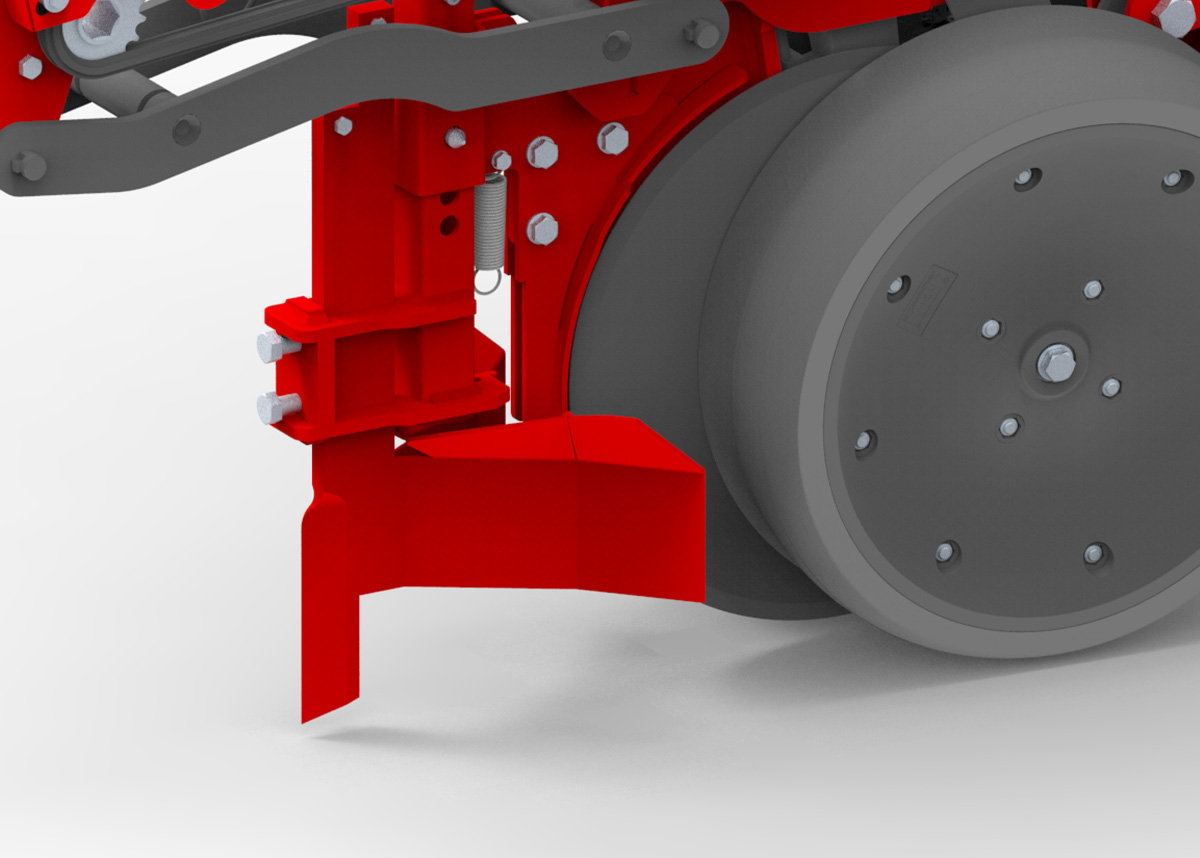

[OPTIONAL] Coulter for arid soils

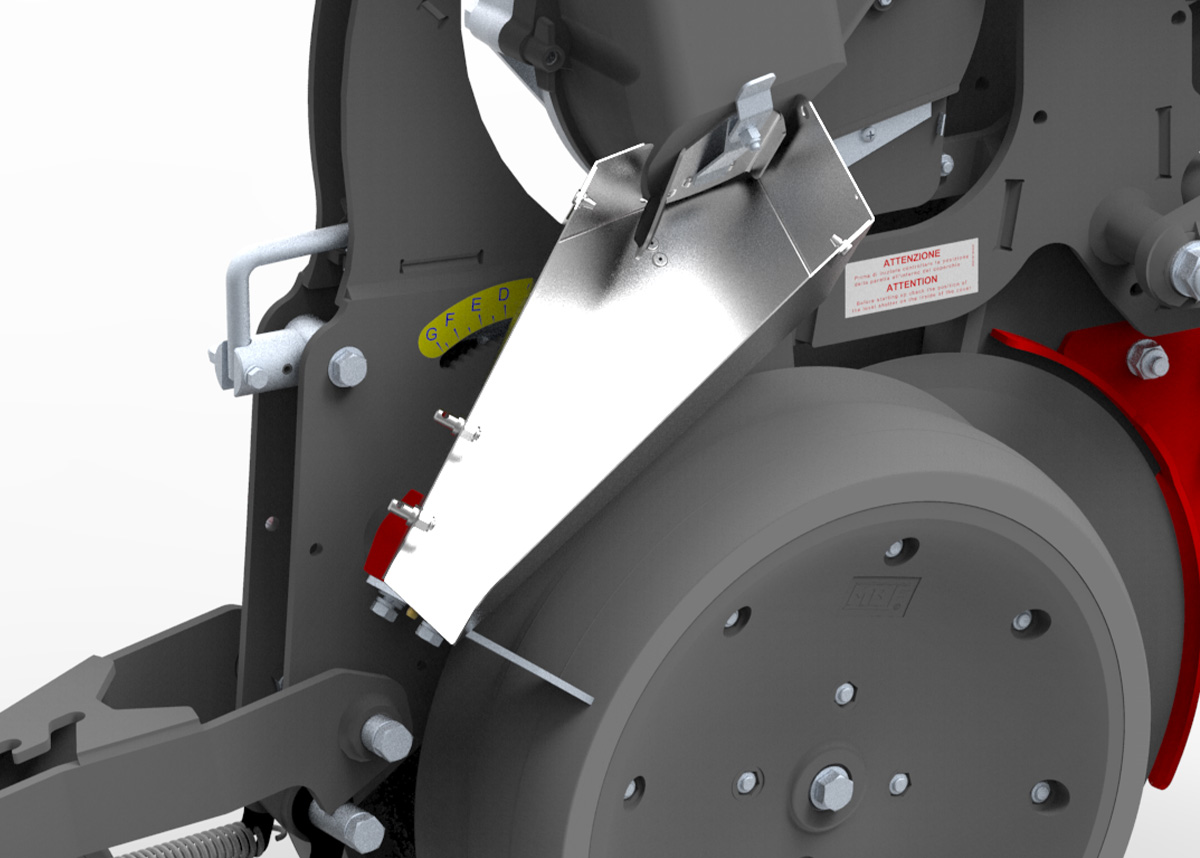

[STANDARD] Seed discharge

AND MORE

FIXED

CARRIED

FOLDABLE

DELTA

MULTIFLEX

CROMIA-SD CROMIA-ME
Weight Peso 125 kg 125 kg
Pressure on the ground (max) Pressione al suolo (max) 280 kg 280 kg
Electrical transmission Trasmissione elettrica • //
Machanical transmission Trasmissione meccanica // •
Shock absorber Ammortizzatore • •
Quick ploughshare adjustment Regolazione rapida spartizzolle • •
Seed tank capacity Capacità tramoggia seme 55 l – 35 l 55 l – 35 l
Furrow closing wheels inclination adjustment Regolazione inclinazione ruotini chiudisolco • •
Furrow closing wheels pressure adjustment Regolazione pressione ruotini chiudisolco • •
Element exclusion Esclusione elemento • •
