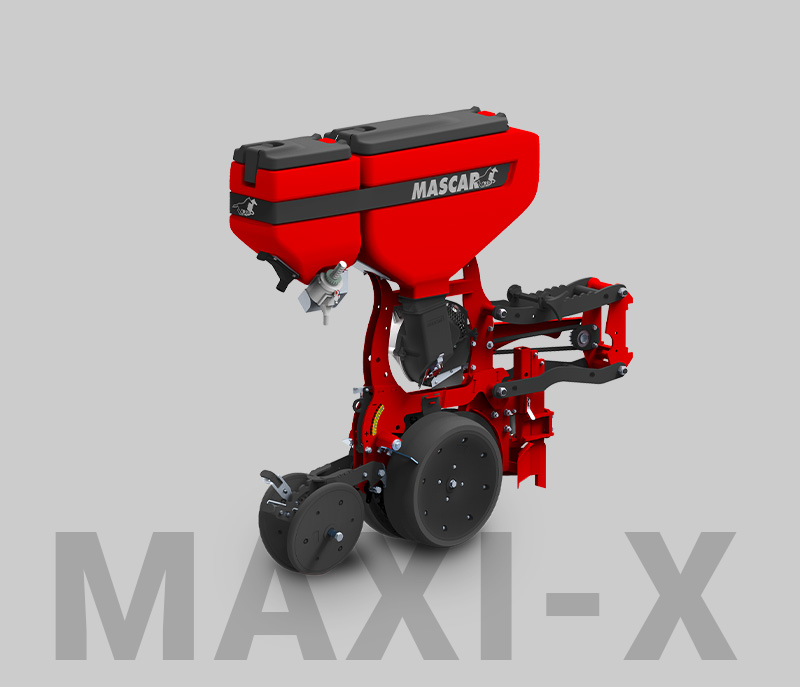

MAXI-X
MECHANICAL SEEDING ELEMENT
The choice of the seeding element is crucial in achieving the best results according to the type of soil to be worked; MASCAR offers diversified options to meet various agronomic requirements:
- MAXI-X
- CROMIA-SD
- CROMIA-ME
TAILORED TO YOUR NEEDS
Years of experience in the design of precision seed drills and the feedback gathered from many of our customers have enabled us to develop a seeding element designed for its user. MAXI-X sows with precision and not only that: in the field, it allows the farmer the complete possibility of customising the parameters, using all his knowledge in the settings, with ease and speed, saving time and effort.
>> CLICK HERE FOR MORE INFO

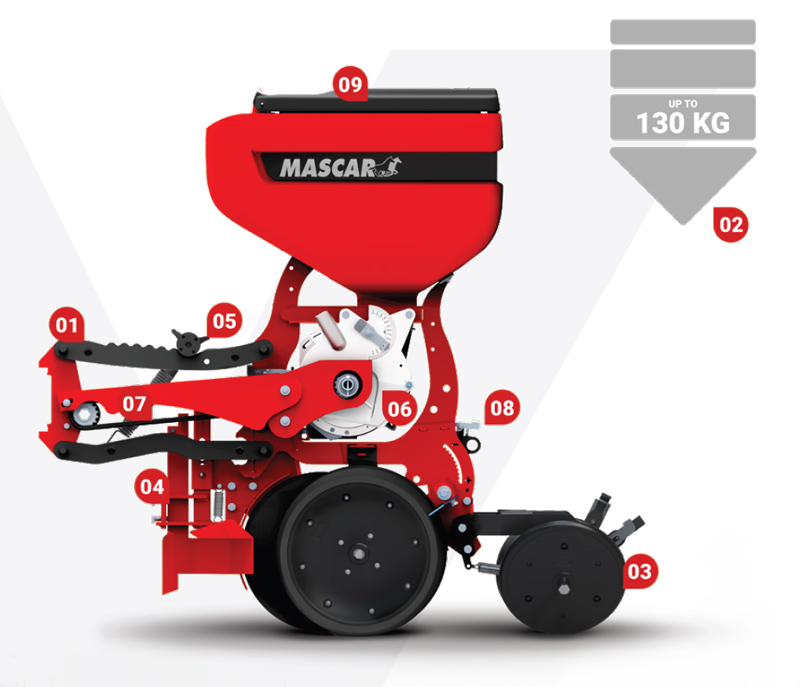

- New parallelogram design
- Ground pressure up to 130 kg
- V-shaped furrow closing wheels adjustable in width and incidence
- Plougshare with quick adjustment (fixed positions) and knife with micro-adjustment
- Load springs adjustment

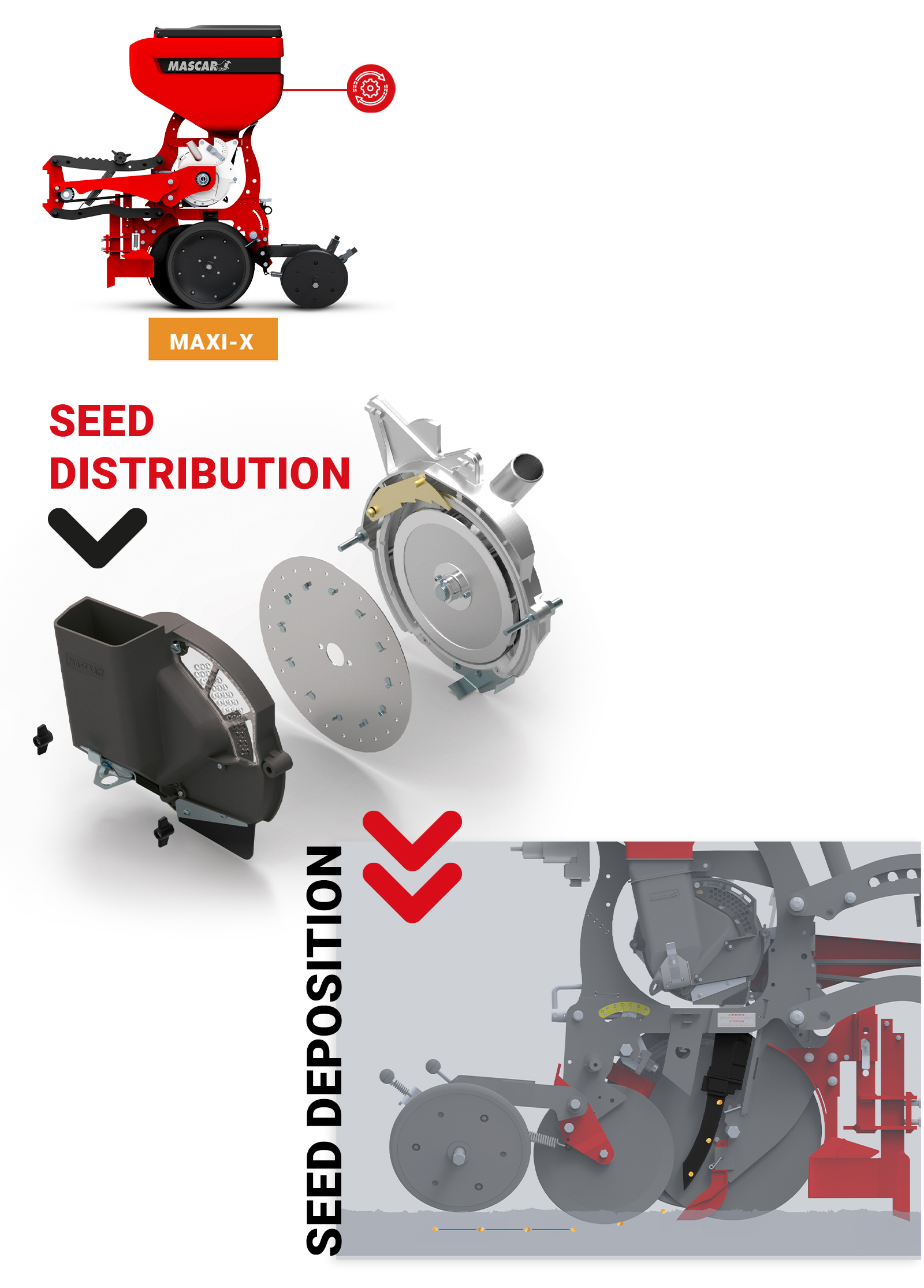

- Vacuum-operated aluminium seed distributor in mechanical version
- Mechanical transmission with reinforced chain
- Seed depth adjustment from 1 to 10 cm
- 55 L seed hopper, with rear hermetically sealed lid and opening lock
Request more information

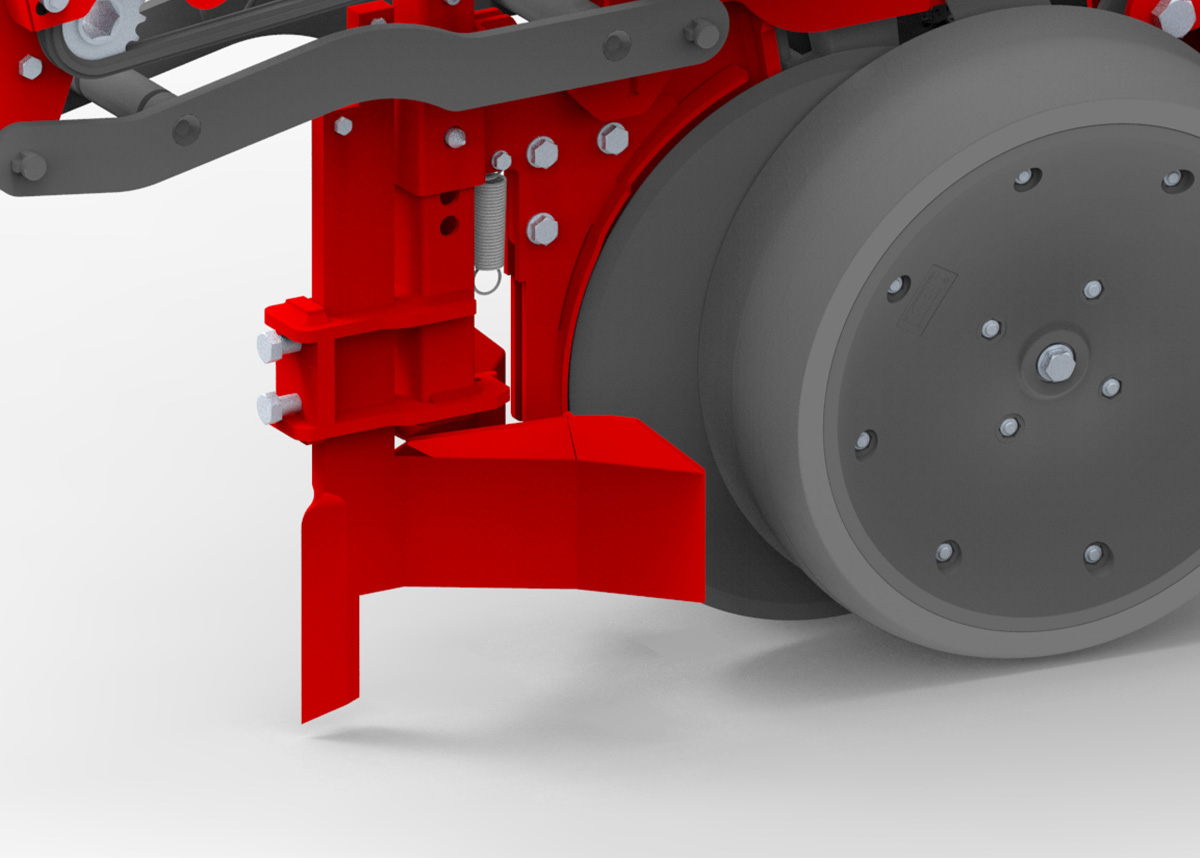

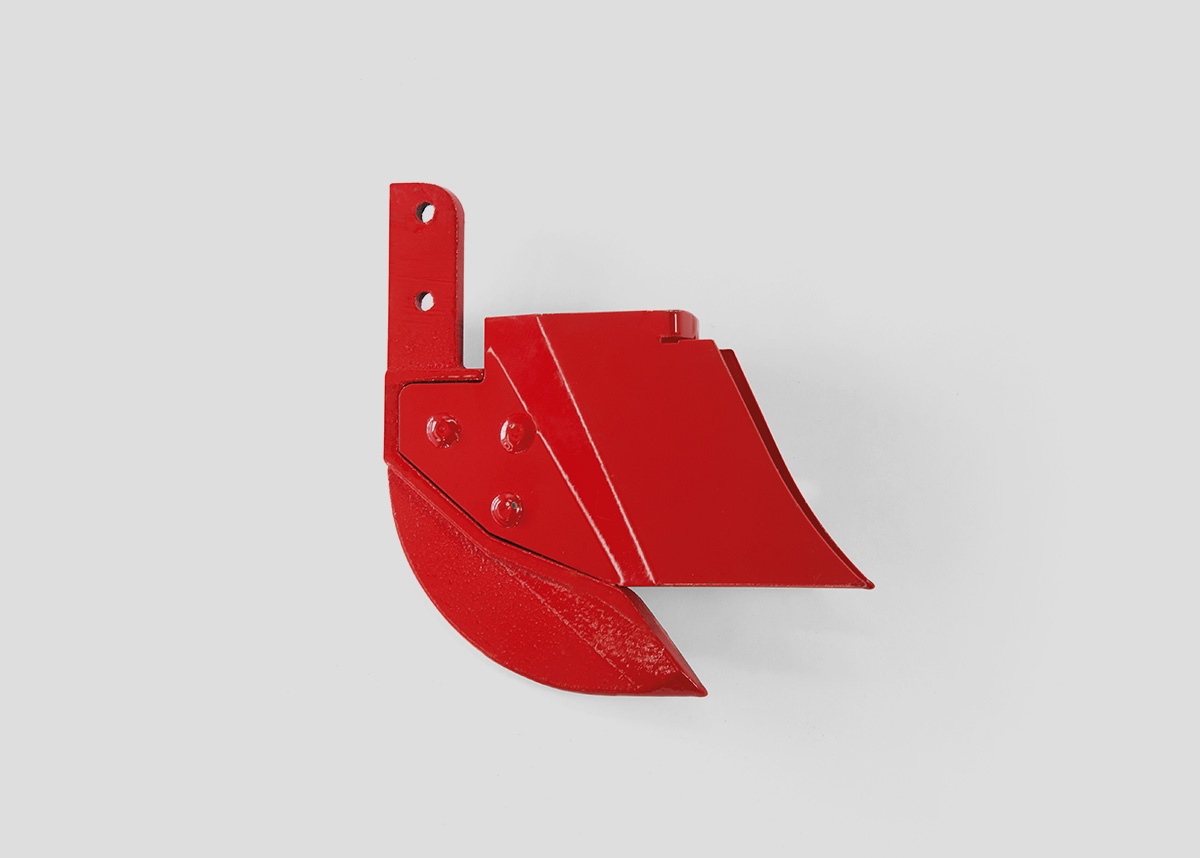

[STANDARD] Plougshare with quick adjustment

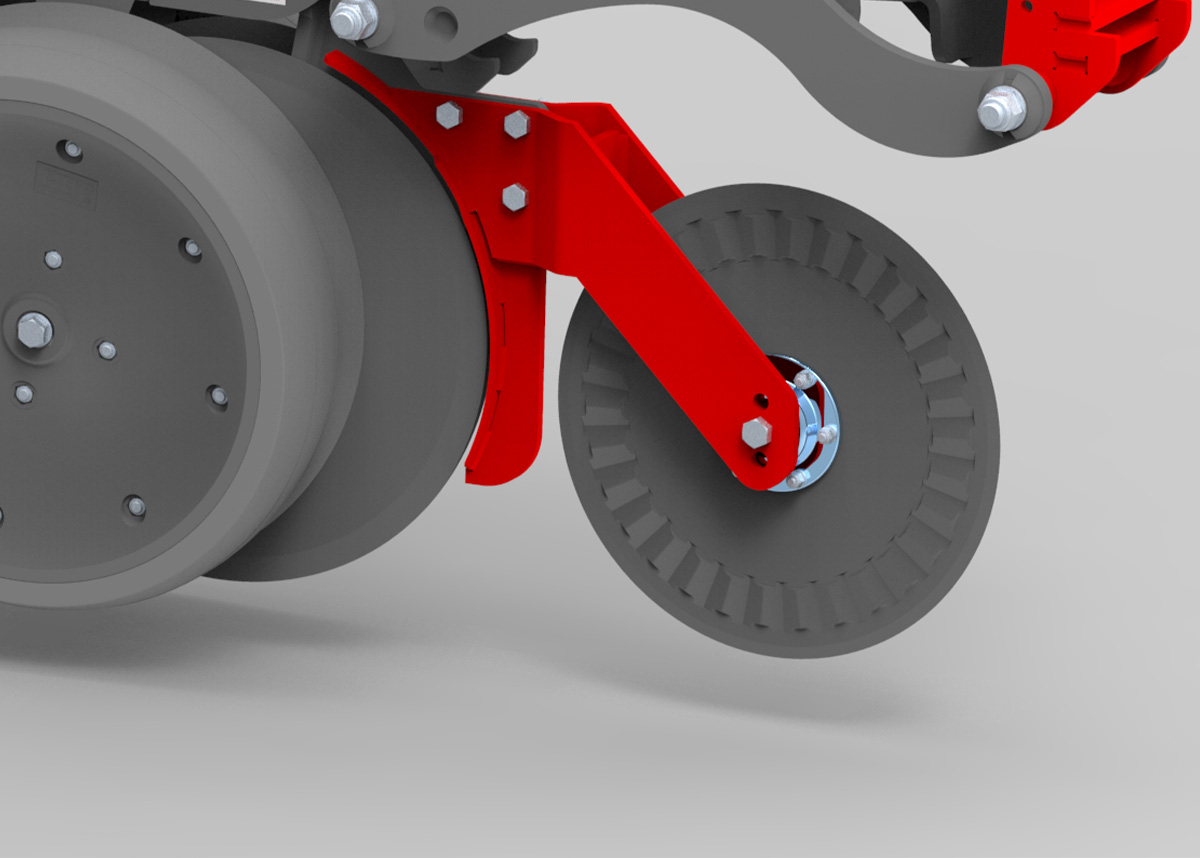

[OPTIONAL] Striped front furrow-opening disc

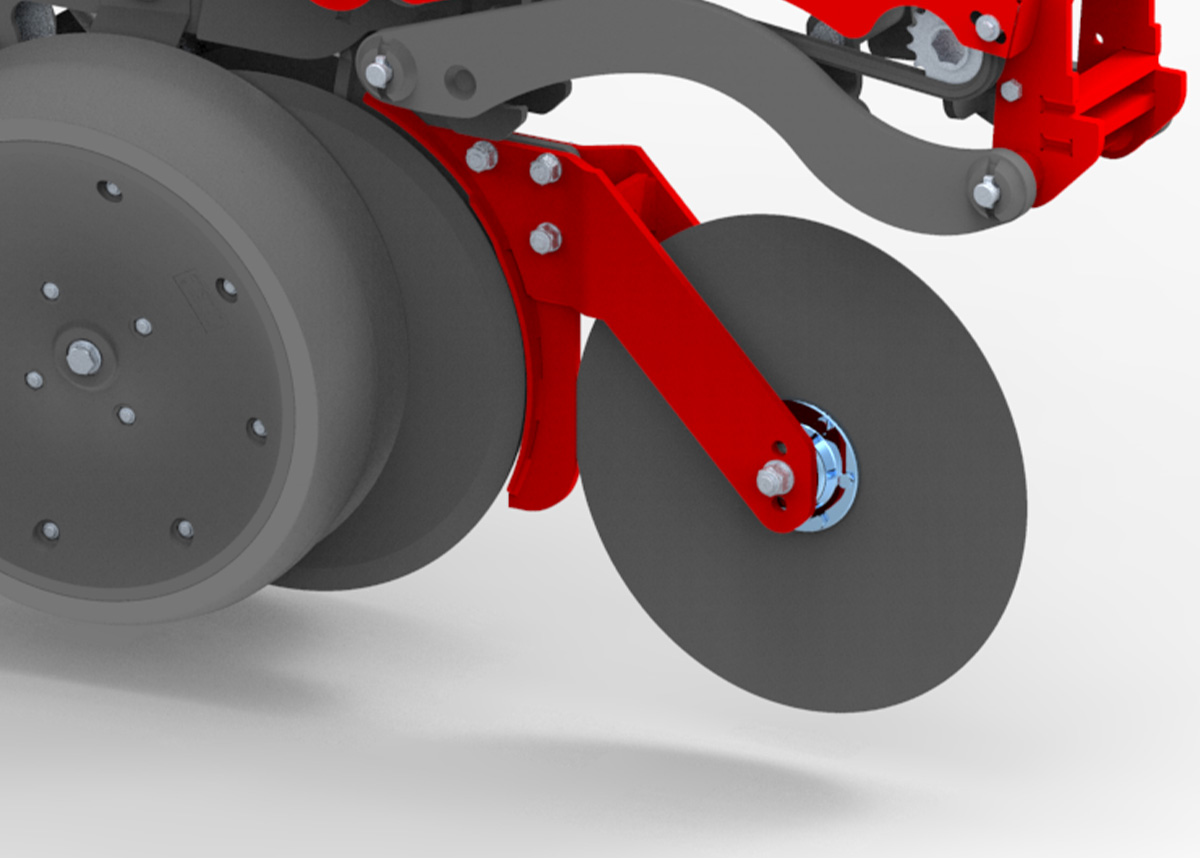

[OPTIONAL] Front disc opener

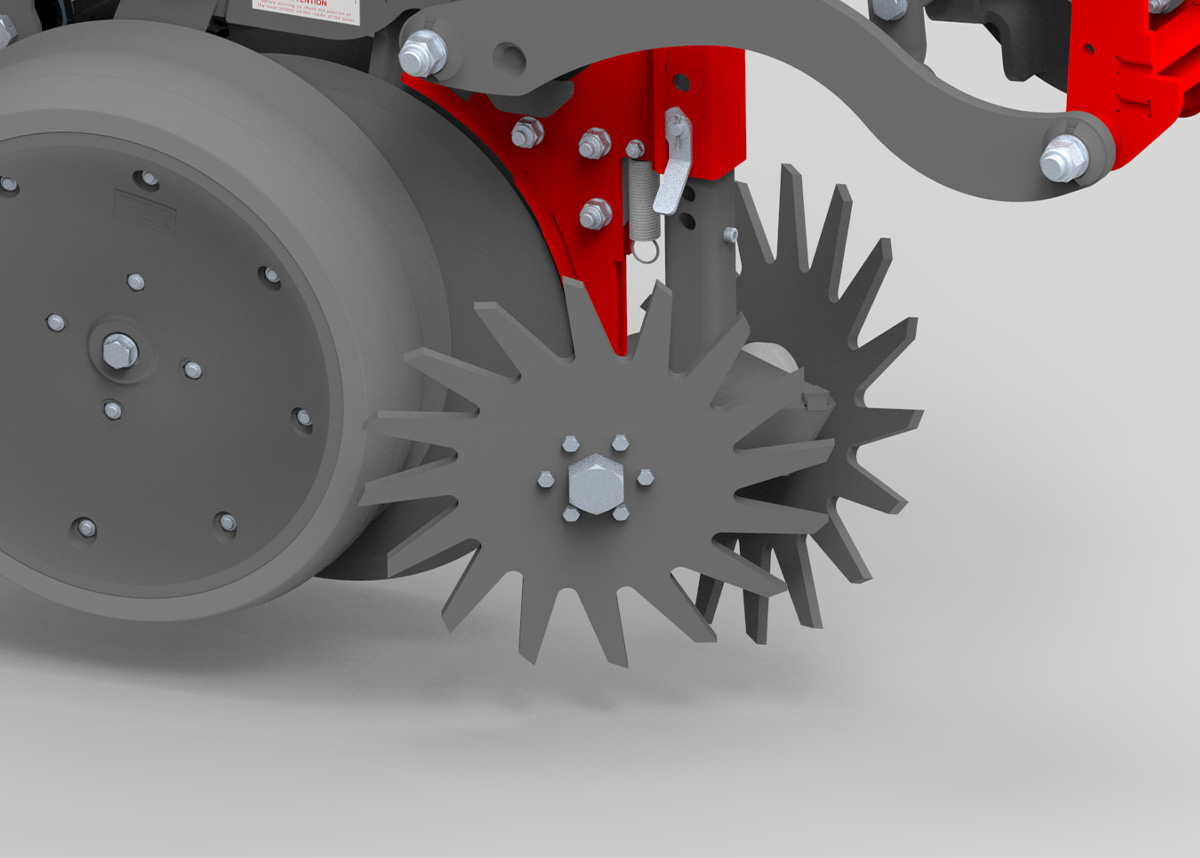

[OPTIONAL] Rotary star residual spreader

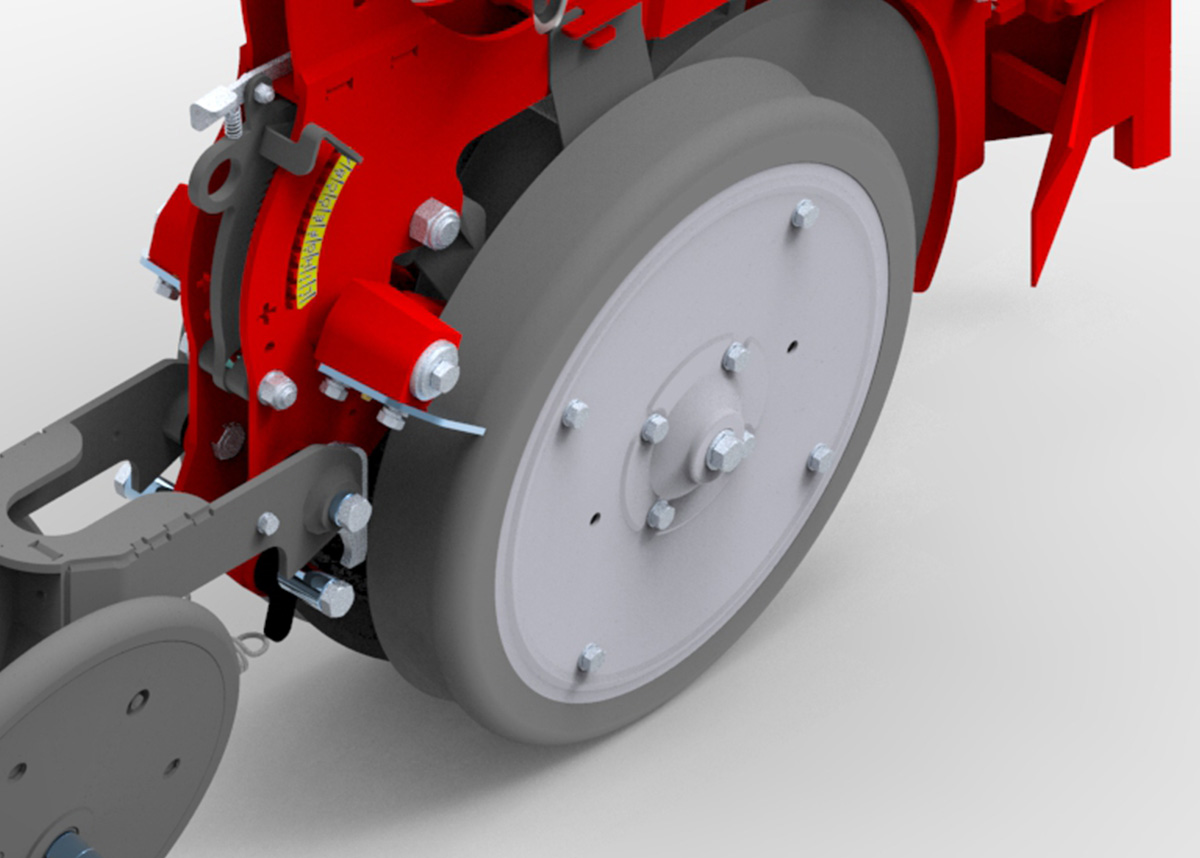

[OPTIONAL] Narrow gauge wheels

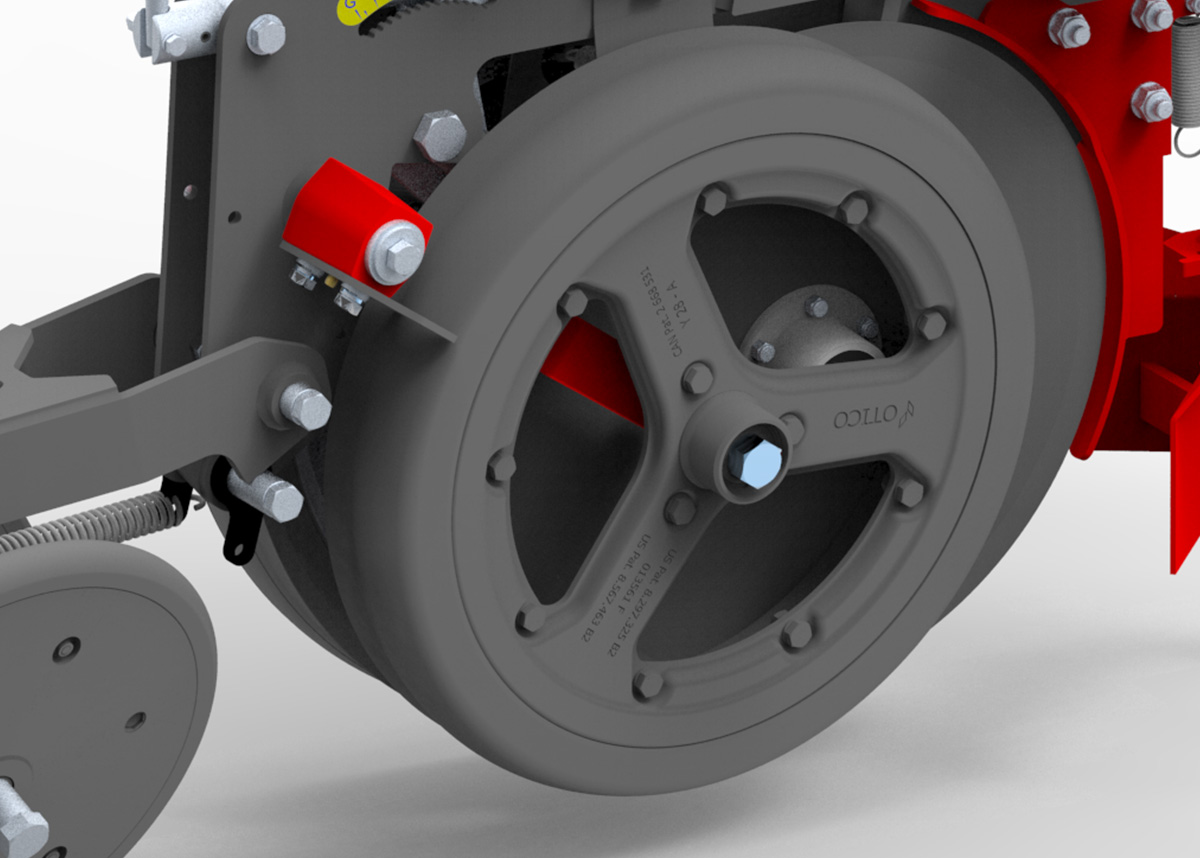

[OPTIONAL] Spoke gauge wheels

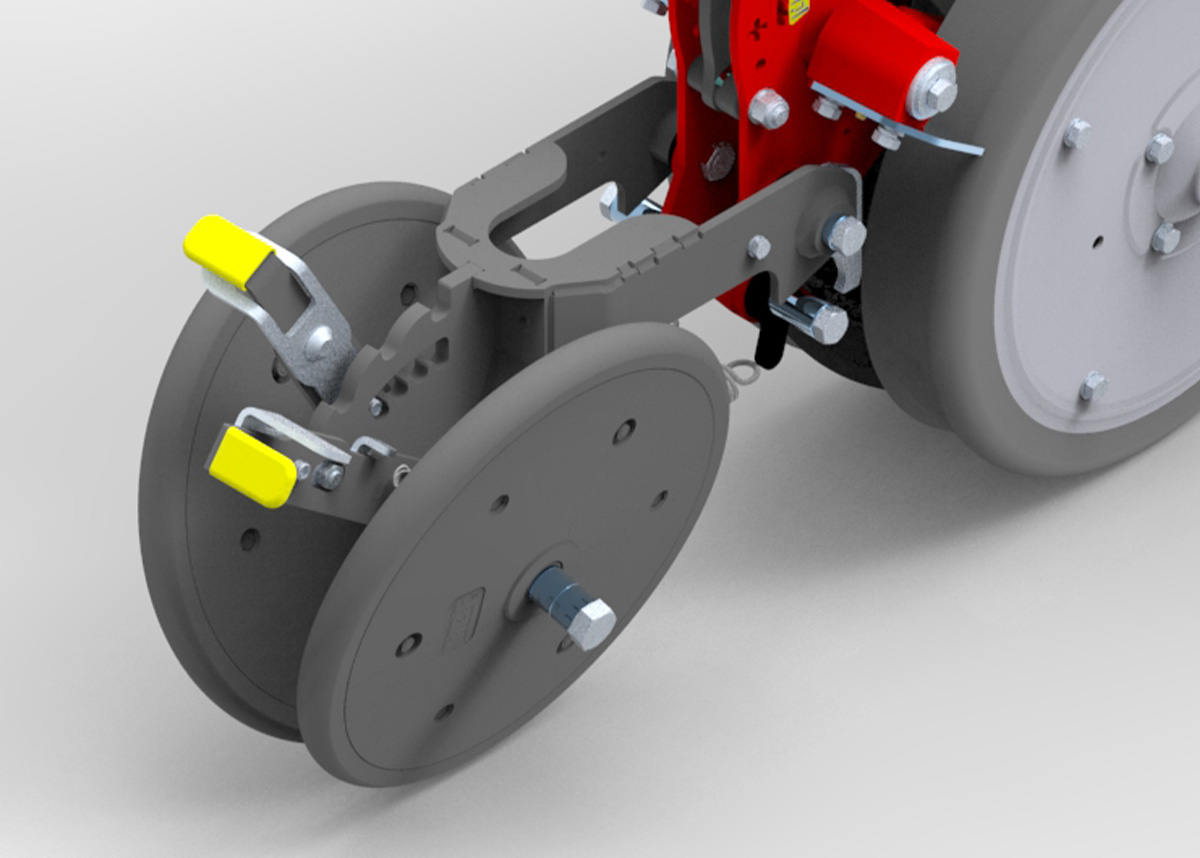

[STANDARD] Rubber wheels at “V” shape 1”

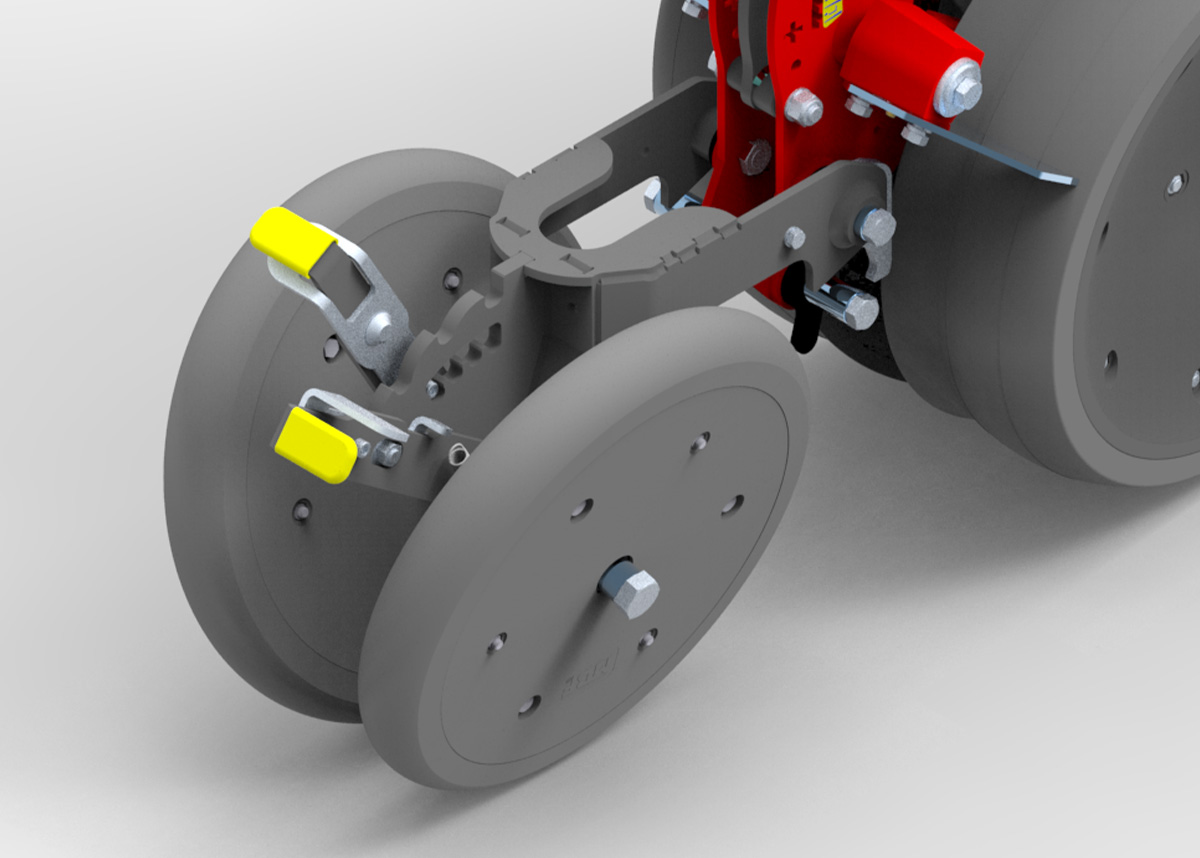

[OPTIONAL] Rubber wheels at “V” shape 2”

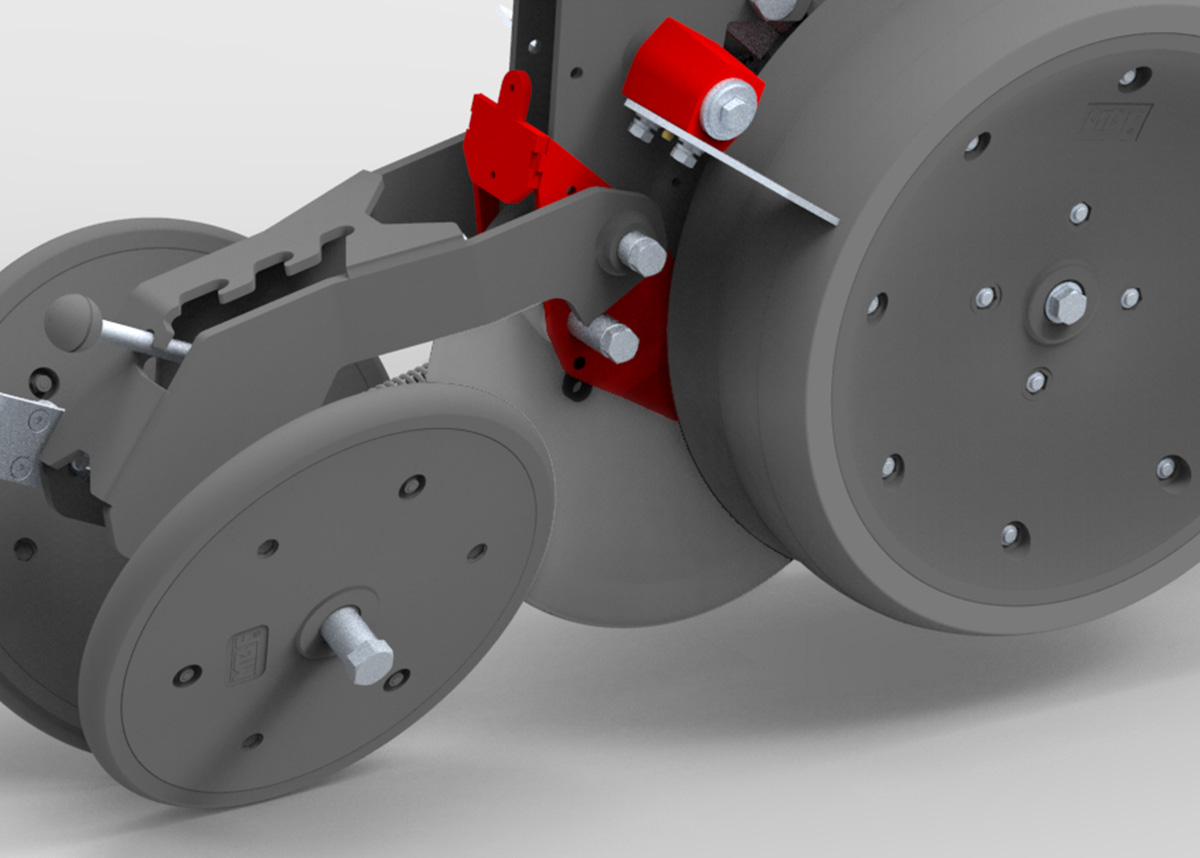

[OPTIONAL] Aluminum pressing wheel

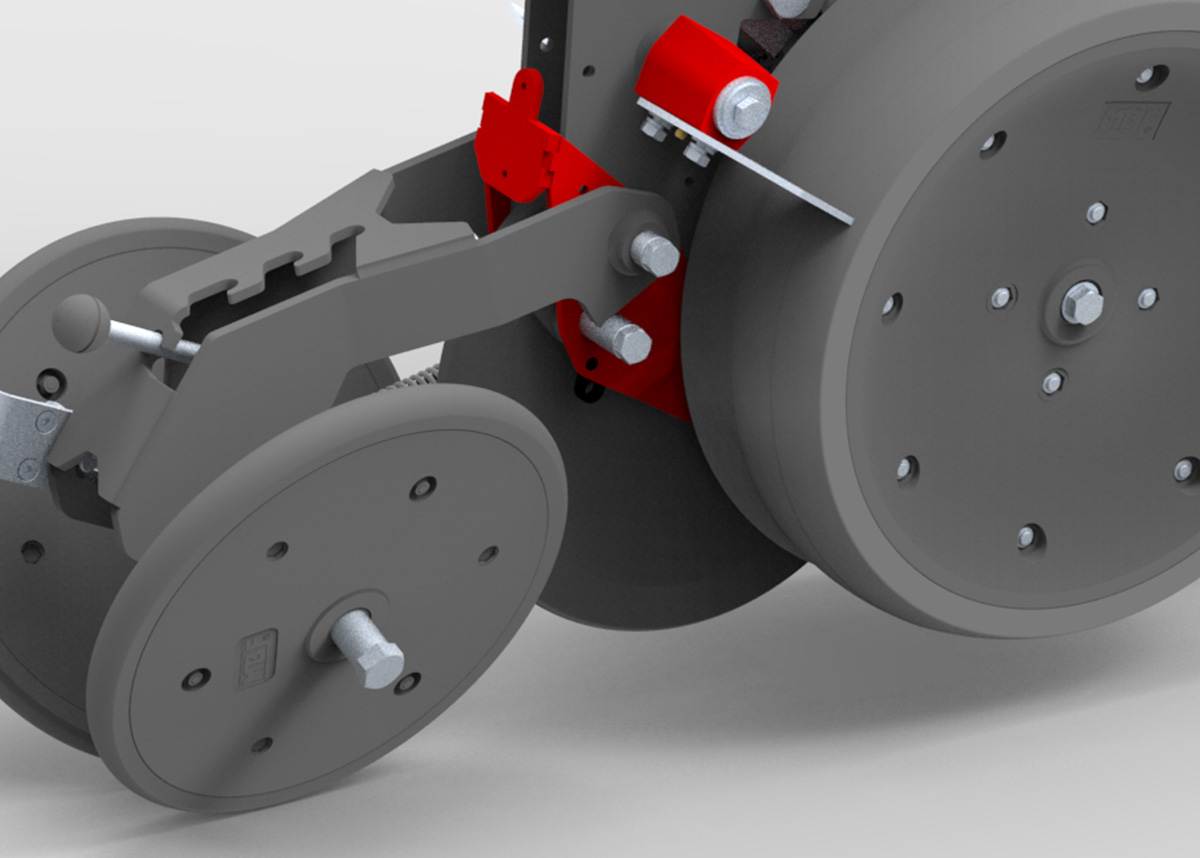

[OPTIONAL] Rubber pressing wheel

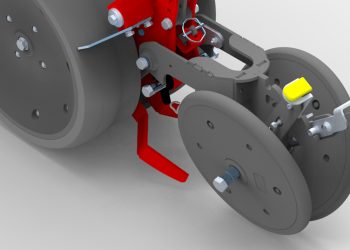

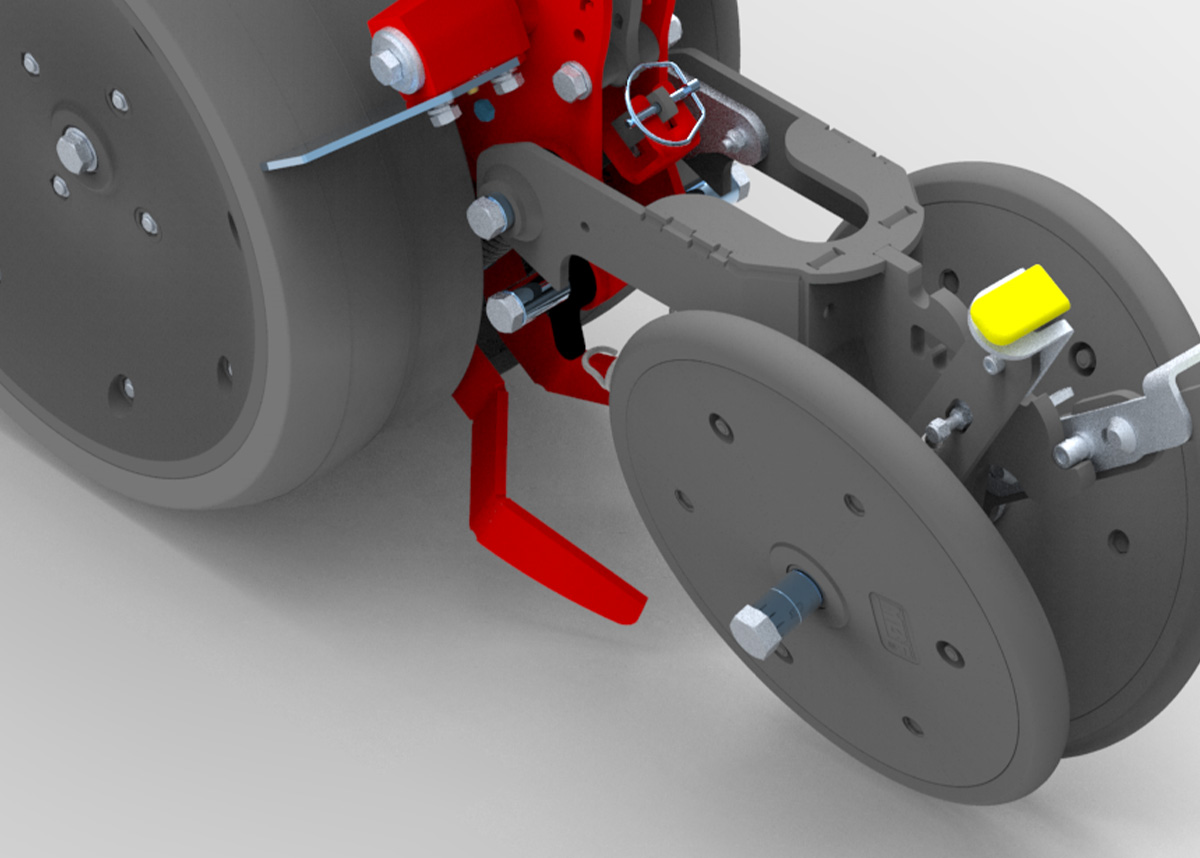

[OPTIONAL] Middle seed cover device

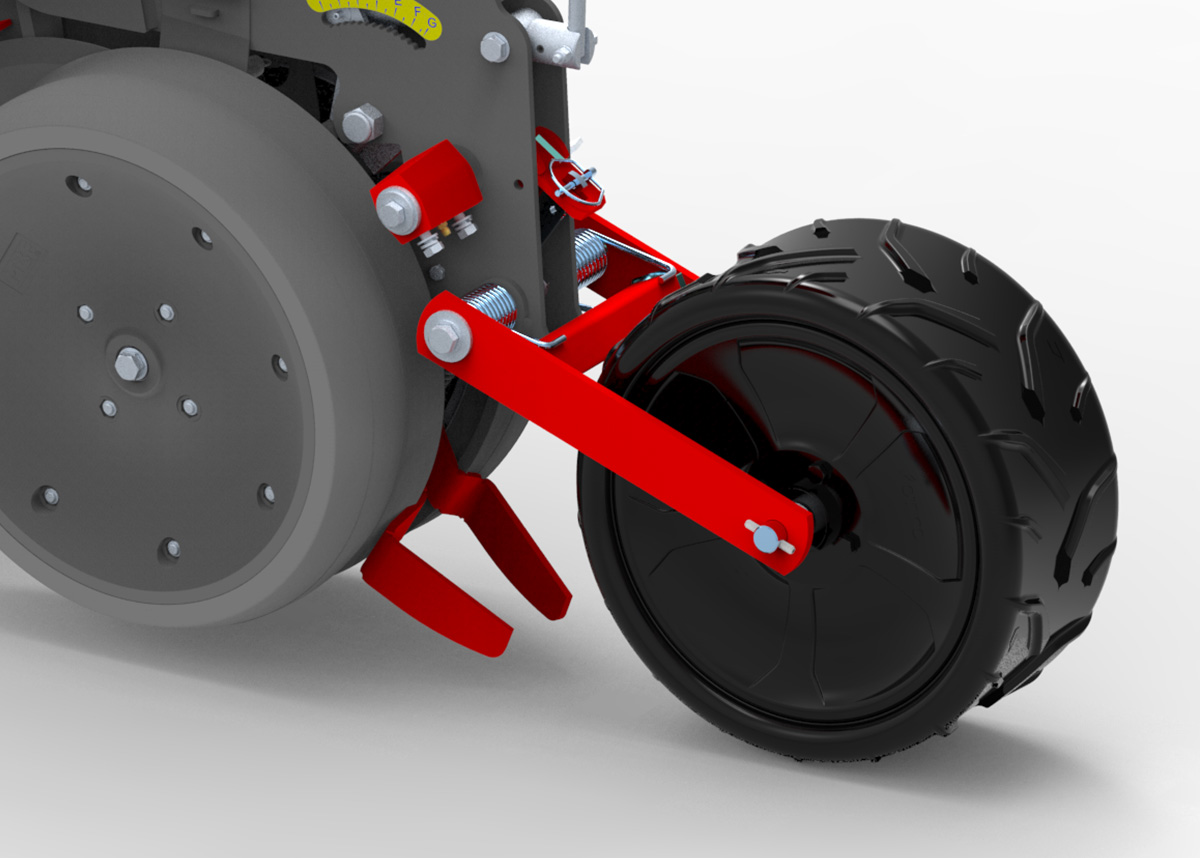

[OPTIONAL] Farmflex wheel and cover seed device
[OPTIONAL] Coulter for arid soils

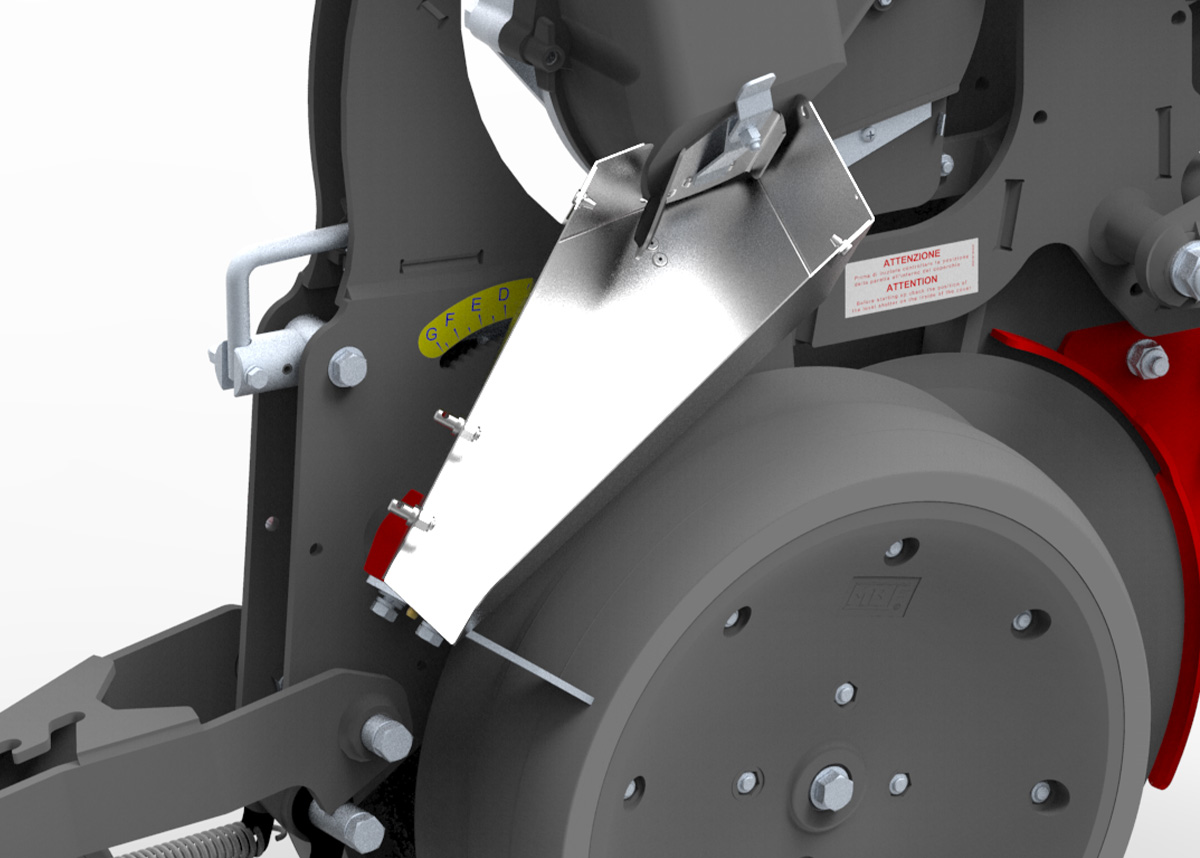

[STANDARD] Seed discharge

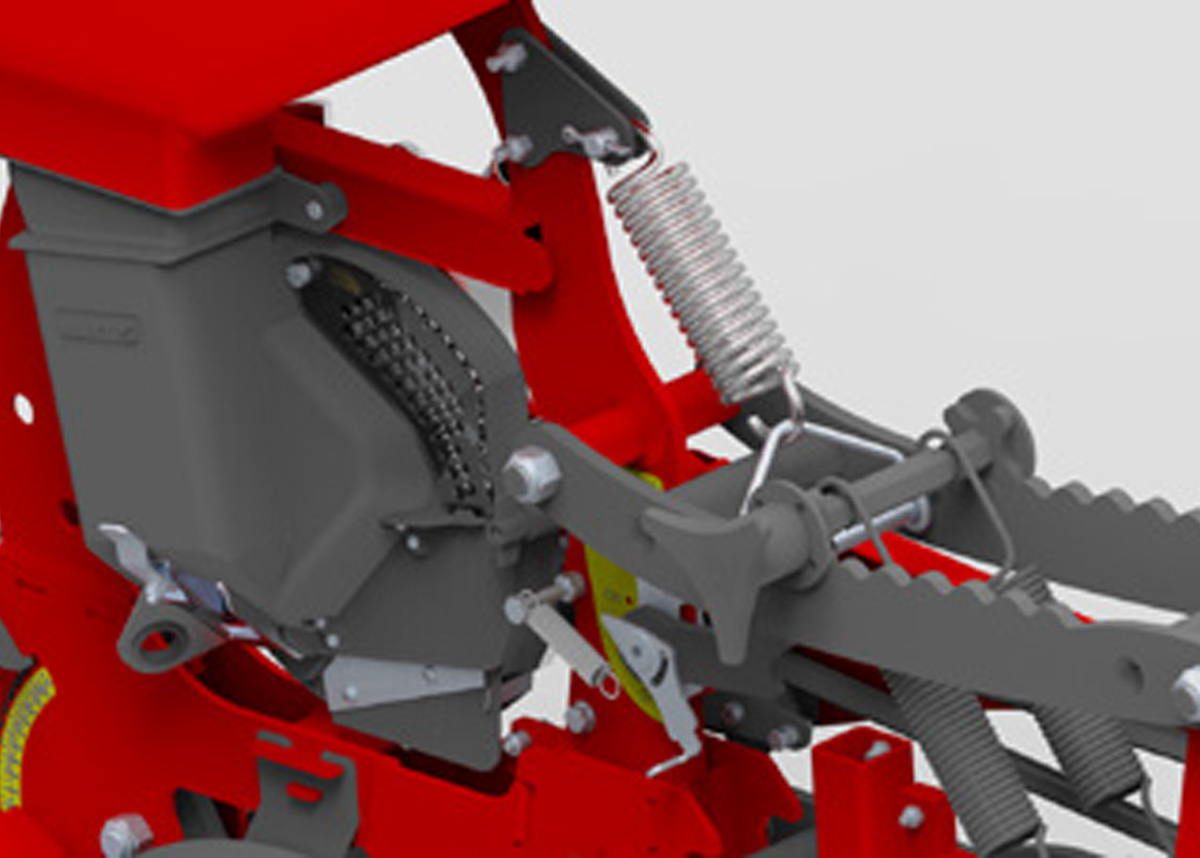

[OPTIONAL] Additional load spring
AND MORE

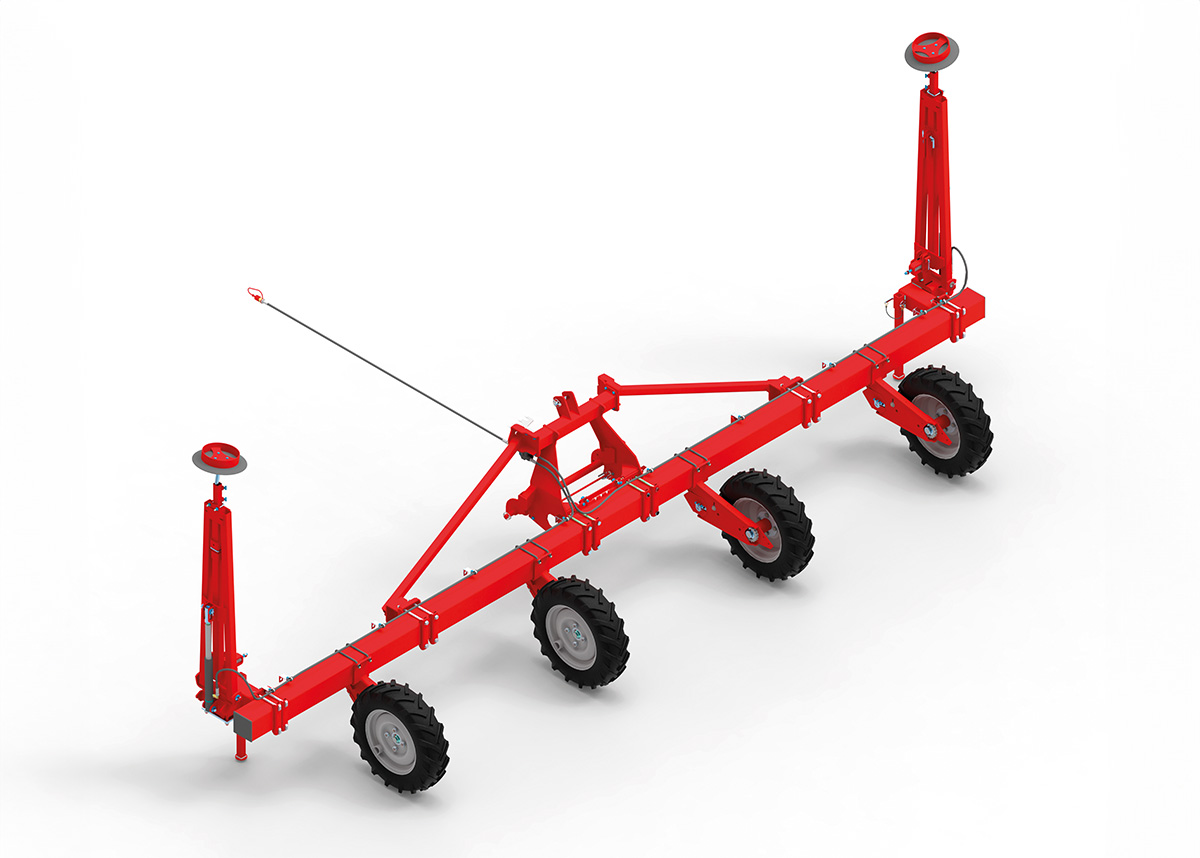

FIXED

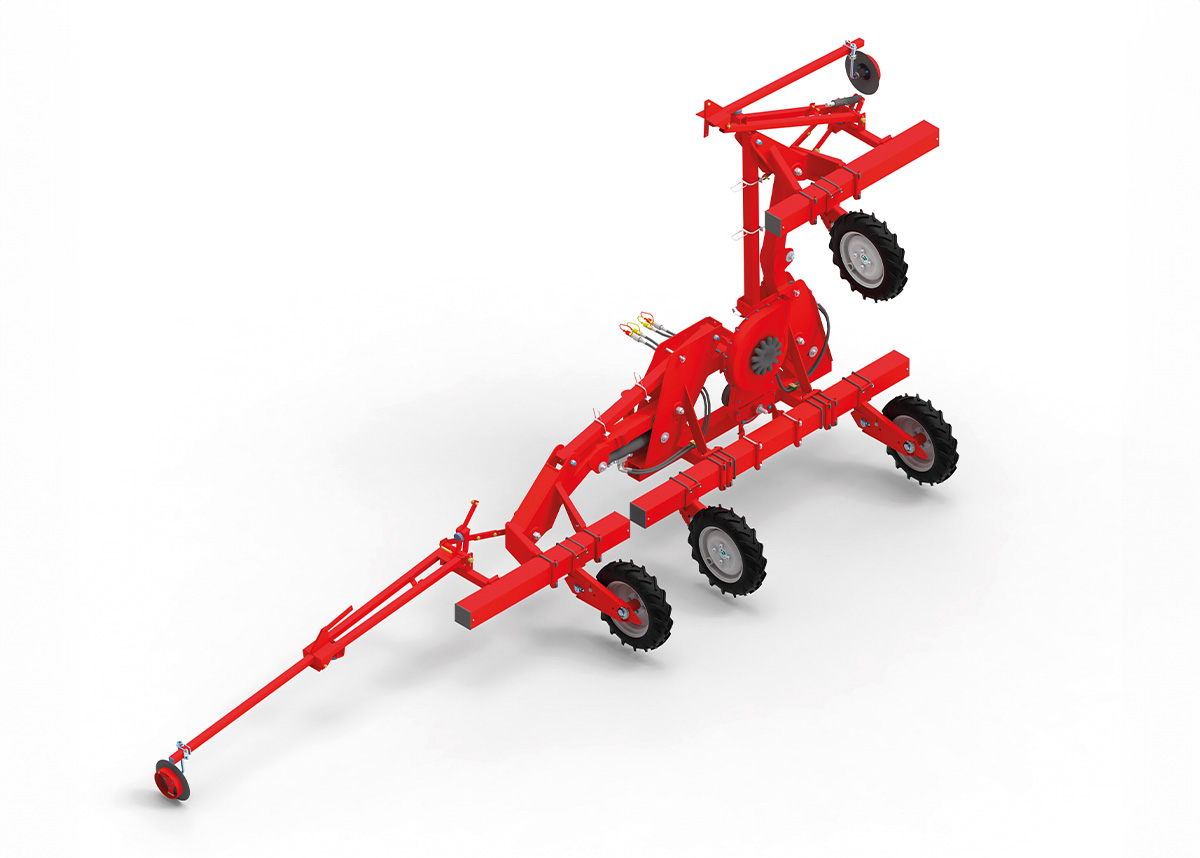

FOLDABLE

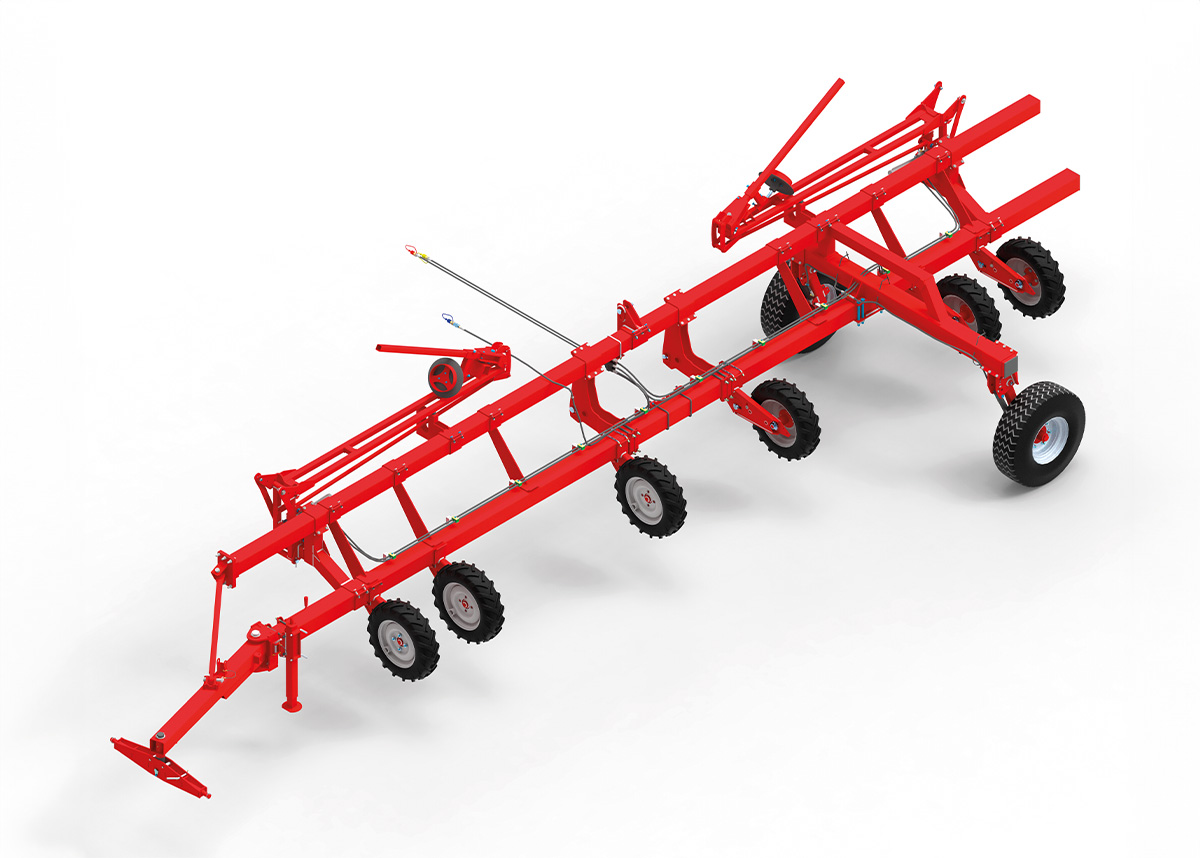

CARRIED

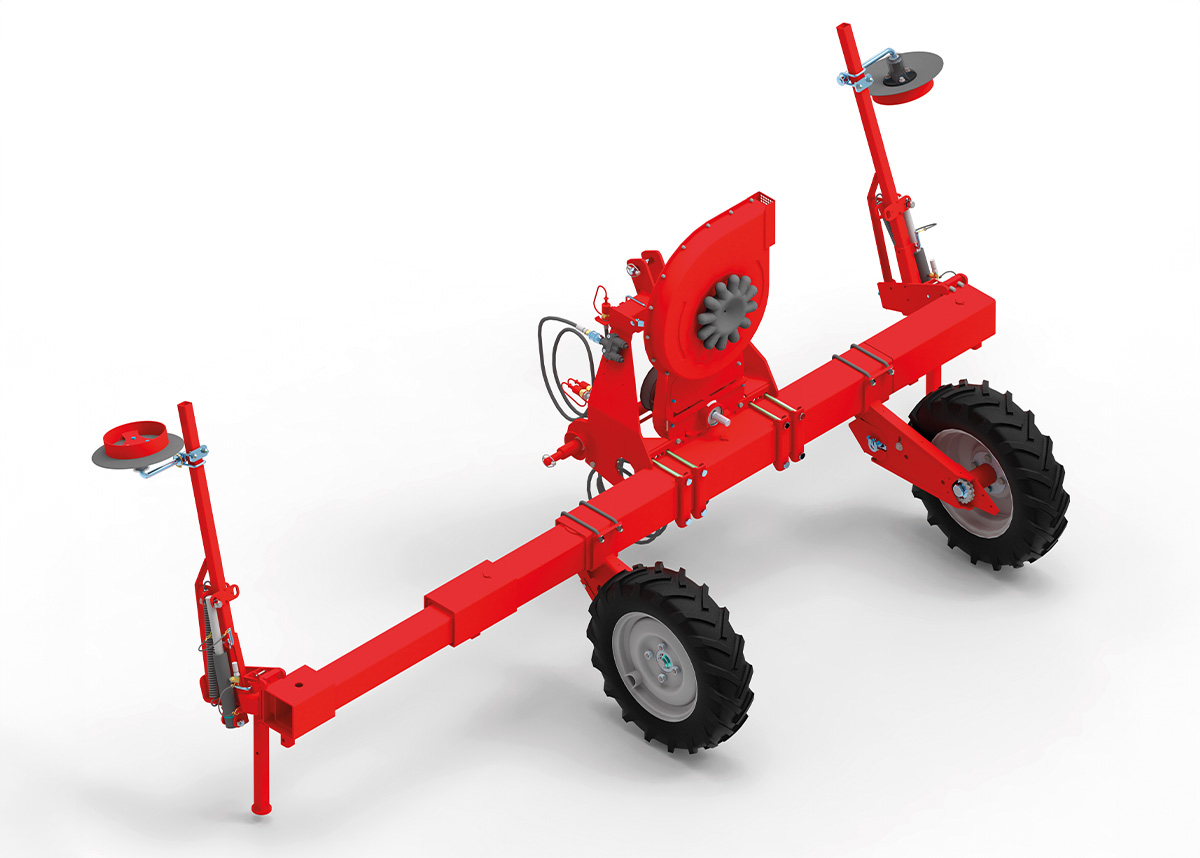

TELESCOPIC

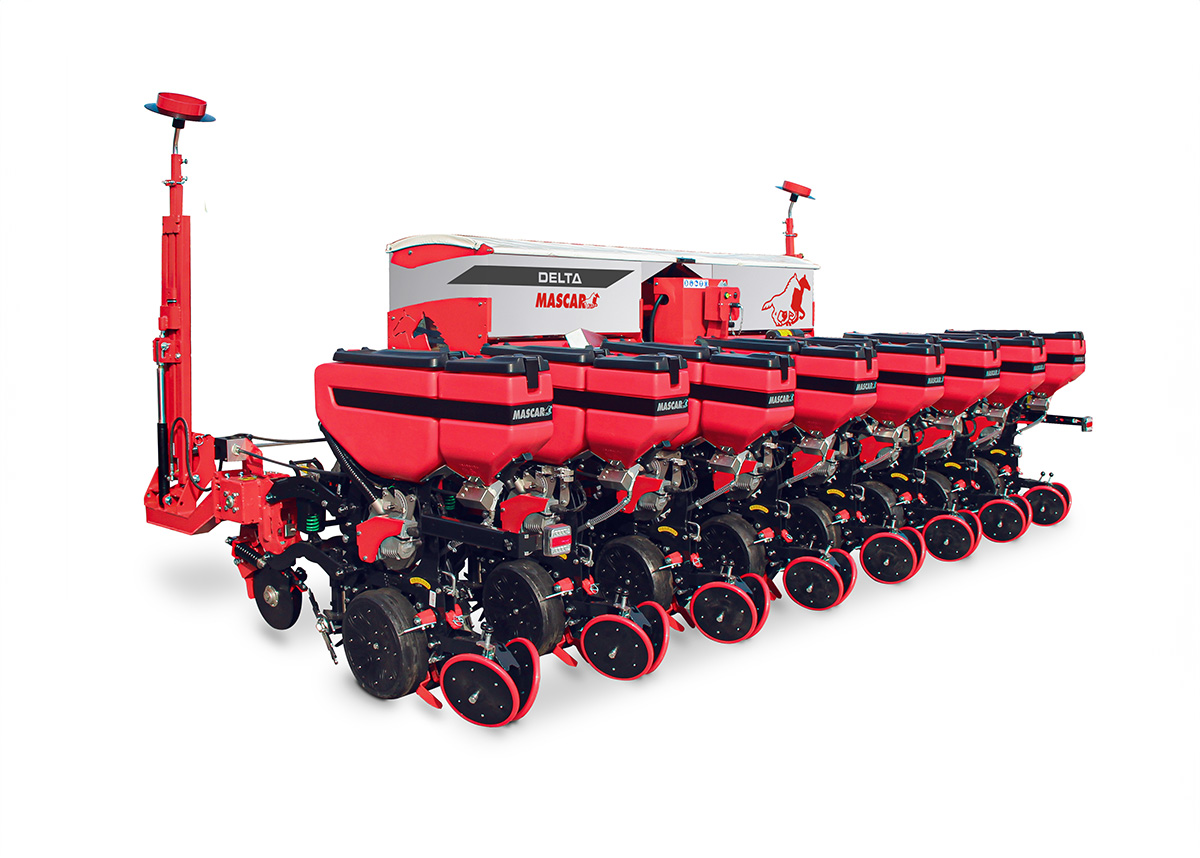

DELTA

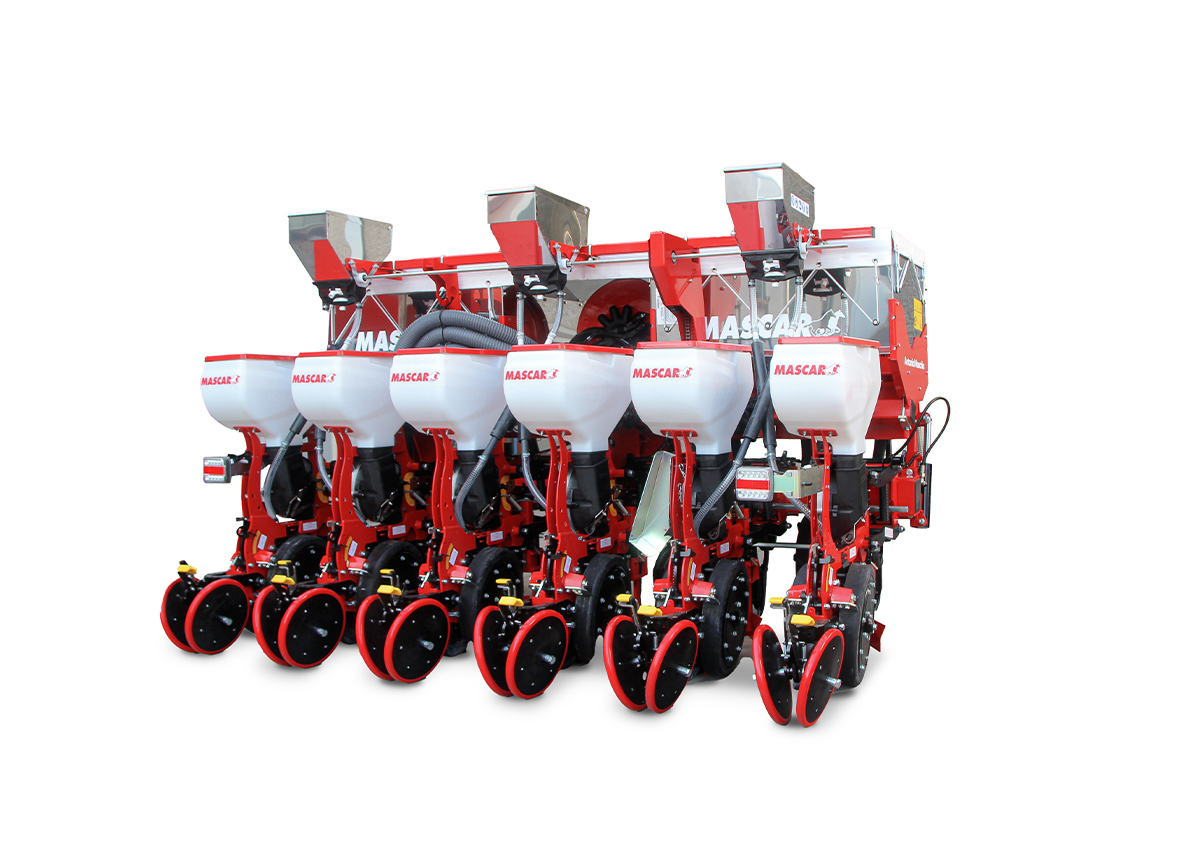

EXACTA
| MAXI-X | ||
| Weight | Peso | 90 kg |
| Pressure on the ground (max) | Pressione al suolo (max) | 130 kg |
| Electrical transmission | Trasmissione elettrica | // |
| Machanical transmission | Trasmissione meccanica | • |
| Shock absorber | Ammortizzatore | // |
| Quick ploughshare adjustment | Regolazione rapida spartizzolle | • |
| Seed tank capacity | Capacità tramoggia seme | 55 l – 35 l |
| Furrow closing wheels inclination adjustment | Regolazione inclinazione ruotini chiudisolco | • |
| Furrow closing wheels pressure adjustment | Regolazione pressione ruotini chiudisolco | • |
| Element exclusion | Esclusione elemento | • |
